Agility Autoparts A/C Condenser 7014267
Agility Autoparts A/C Condenser 7014267

A/C Condenser for 1990-1995 Mazda 323 & More - Agility 7014267

Be the first to review this product
$63.99
MPN: 7014267
UPC: 887548019899
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert

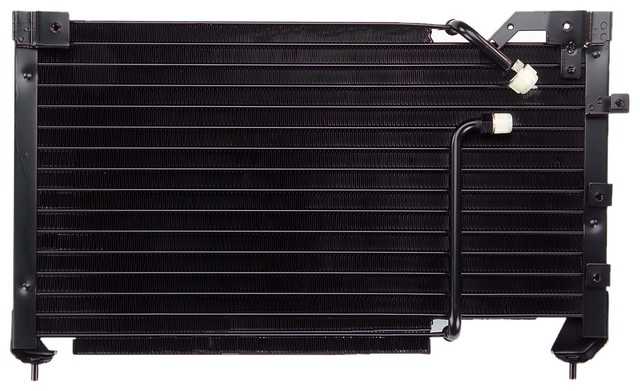

Agility Autoparts A/C Condenser P/N:7014267
Agility Autoparts A/C Condenser P/N:7014267
$63.99

Shed cabin-cooling heat and keep refrigerant flowing with the Agility Auto Parts A/C Condenser 7014267. This parallel-flow condenser drops in as a direct-fit replacement for the 1990-1995 Mazda 323 [All] and the 1990-1994 Mazda Protege [All], where it sits at the front of the system to release heat from the high-pressure refrigerant and condense it from a hot vapor into a liquid before it reaches the expansion valve.

  • Parallel-flow aluminum core: Parallel Flow construction with an aluminum core, measuring 23.250 in long, 12.250 in high and 0.750 in thick.
  • Fittings: M20x1.5 Male O-Ring inlet and M16x1.5 Male O-Ring outlet.
  • Built to spec: Certified to meet or exceed OE specifications, engineered under ISO TS16949 quality systems and 100% leak tested for a drop-in fit.
  • Design: Uses mini-micro extruded tube technology for thermal performance.

Note: this condenser cannot be properly flushed, so replacement rather than flushing is required after a system contamination event. Part finish and color may vary. Country of origin: China. If a leaking or blocked original condenser is the cause of poor A/C cooling, this unit replaces it.

Interchange: 15-62358 · 24-60119 · 31-4267 · 7-4267
1562358 · 2460119 · 314267 · 74267 · A2521 · P38403P · 4267 · AC4267 · AUC4267 · BB7C61480 · BB7CG1480 · BR7061480 · BR7061480A · 38403 · 638403 · C4267 · 1038403 · 6118

This part cross-references / interchanges with the following part numbers:

15-62358, A2521, P38403P, 4267, AC4267, AUC4267, BB7C61480, BB7CG1480, BR7061480, BR7061480A, 38403, 24-60119, 638403, 31-4267, C4267, 7-4267, 1038403, 6118

Frequently Asked Questions

What vehicles does this condenser fit?

It is a direct-fit replacement for the 1990-1995 Mazda 323 [All] and the 1990-1994 Mazda Protege [All]. Confirm the fit for your vehicle in the Buyer's Guide tab.

What does an A/C condenser do?

It releases heat from the high-pressure refrigerant, condensing it from a hot vapor into a liquid before it flows on toward the expansion valve, supporting normal A/C cooling.

What are the core specifications?

It uses a parallel-flow aluminum core measuring 23.250 in long, 12.250 in high and 0.750 in thick, with an M20x1.5 Male O-Ring inlet and an M16x1.5 Male O-Ring outlet.

Can this condenser be flushed?

No. Per the manufacturer, this condenser cannot be properly flushed, so it should be replaced rather than flushed after a system contamination event.

Is it tested and built to OE specifications?

Yes. Agility states it is certified to meet or exceed OE specifications, engineered under ISO TS16949 quality systems and 100% leak tested for a drop-in fit.
