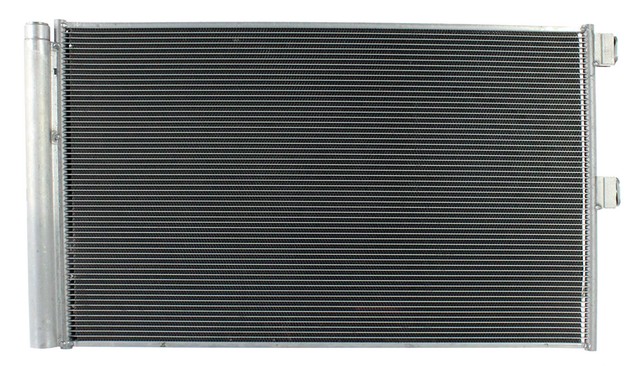

Agility Autoparts A/C Condenser P/N:7014469

Be the first to review this product

$70.99

MPN: 7014469

UPC: 887548399915

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Agility Autoparts A/C Condenser P/N:7014469

$70.99

Description

Keep cabin cooling strong and refrigerant moving with the Agility Auto Parts A/C Condenser (P/N 7014469). It drops in as a direct-fit replacement for the 2015-2018 Mercedes-Benz A45 AMG, the 2015-2019 CLA45 AMG and GLA45 AMG, and the 2019-2021 A220. Mounted at the front of the A/C system, the condenser releases heat from the hot, high-pressure refrigerant leaving the compressor, condensing it from vapor to liquid before it flows on toward the expansion valve.

Parallel-flow aluminum core: parallel-flow construction with an aluminum core and mini-micro extruded tube technology for enhanced thermal performance.
Block-connection fittings: both the inlet and outlet use block-connection fittings.
Receiver/drier included: ships with the receiver/drier per the catalog listing.
Tested and certified: engineered under ISO TS16949 quality systems, 100% leak tested, and certified to meet or exceed OE specifications for a drop-in fit.

Core specs: 0.500 in thick, 16.000 in high, and 26.125 in long. Country of origin: China. If poor A/C cooling, refrigerant leaks, or oily residue at the condenser trace back to a failed original condenser, this replaces it.

Interchange: 31-4469 · 7-4469
314469 · 74469 · 4469 · AUC4469 · 995001054

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

4469, AUC4469, 995001054, 31-4469, 7-4469

Frequently Asked Questions

What does this A/C condenser do?

It releases heat from the hot, high-pressure refrigerant leaving the compressor, condensing it from a vapor into a liquid before it continues to the expansion valve.

Which vehicles does P/N 7014469 fit?

It is a direct-fit replacement for the 2015-2018 Mercedes-Benz A45 AMG, 2015-2019 CLA45 AMG, 2015-2019 GLA45 AMG, and 2019-2021 A220. See the Buyer's Guide tab to confirm your vehicle.

Does it include a receiver/drier?

Yes. Per the catalog, this condenser ships with the receiver/drier included.

What is the core construction?

It has a parallel-flow aluminum core built with mini-micro extruded tube technology. Core dimensions are 0.500 in thick, 16.000 in high, and 26.125 in long.

What are signs the condenser may need replacing?

Weak A/C cooling, refrigerant leaks, or oily residue around the condenser can indicate failure. Diagnose the cause first; if the original condenser is at fault, this replaces it.
