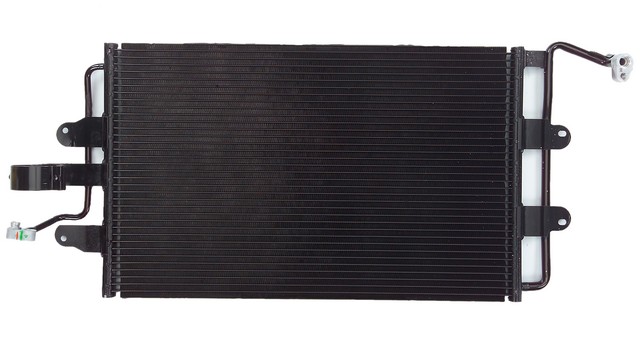

Keep the air conditioning cold and the refrigerant loop moving with the Agility Auto Parts A/C Condenser 7014932, a direct-fit replacement for the 1998-2006 Volkswagen Beetle [All]. Mounted at the front of the system, the condenser is a heat exchanger that cools and condenses the hot, high-pressure refrigerant leaving the compressor from a gas back into a liquid — if a leaking or blocked original condenser is the cause of weak cooling, this replaces it.
- Parallel-flow design: Uses a parallel-flow core for efficient heat transfer.
- Aluminum core: Built with an aluminum core measuring 23.125 in long, 14.250 in high and 0.625 in thick, with block-connection inlet and outlet fittings.
- Quality tested: Engineered and manufactured under ISO/TS 16949 quality systems and 100% leak tested; certified to meet or exceed OE specifications for a drop-in fit right out of the box.
Note: this condenser cannot be properly flushed, so replace it rather than attempting to flush the old unit. One condenser is used per application. Country of origin: China.
Interchange: 477-0859 · 24-20092 · 31-4932 · 7-4932
4770859 · 2420092 · 314932 · 74932 · A403 · P40185P · 3007 · 351037651 · AC4932 · 4932 · AUC4932 · 94522 · 40185 · 640390 · 817427 · 1040185 · 6047 · 1C0820413 · 1C0820413A · 1C0820413E
This part cross-references / interchanges with the following part numbers:
A403, P40185P, 3007, 351037651, AC4932, 477-0859, 4932, AUC4932, 94522, 40185, 24-20092, 640390, 31-4932, 7-4932, 817427, 1040185, 6047, 1C0820413, 1C0820413A, 1C0820413E
Frequently Asked Questions
What vehicle does this condenser fit?
It is a direct-fit replacement for the 1998-2006 Volkswagen Beetle [All]. Check the "Vehicles it fits" section to confirm it matches your vehicle.
What does an A/C condenser do?
It is a heat exchanger that cools the high-pressure refrigerant leaving the compressor, condensing it from a gas back into a liquid before it flows to the rest of the system.
What type of core does it use?
It uses a parallel-flow aluminum core with block-connection inlet and outlet fittings, measuring 23.125 in long, 14.250 in high and 0.625 in thick.
Can this condenser be flushed?
No. Per the manufacturer, this condenser cannot be properly flushed, so it should be replaced rather than flushed when servicing the A/C system.
Is it tested and built to OE specifications?
Yes. It is engineered under ISO/TS 16949 quality systems, 100% leak tested, and certified to meet or exceed OE specifications for a drop-in fit.
