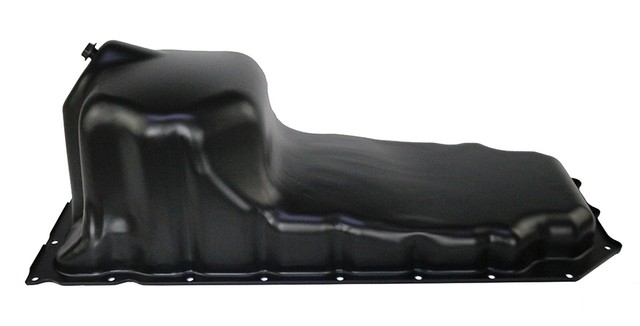

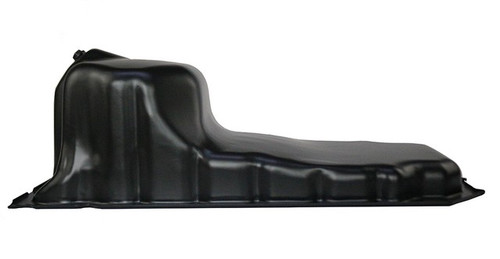

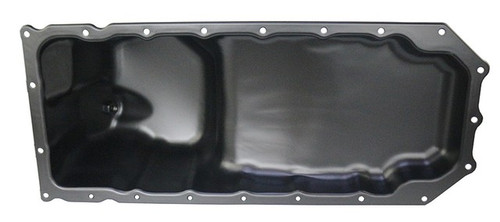

Keep the engine's oil supply contained and ready for the pump with the Agility Auto Parts Oil Pan 3310047, a steel engine oil pan that comes with its own drain plug. It is listed for several models, all with the V8-5.7L engine, among them the 2011-2012 Ram 1500, 2003-2010 Dodge Ram 1500 and 2011-2012 Ram 2500. It is a direct-fit replacement for the listed applications; see the Buyer's Guide tab for the full list.
The oil pan mounts to the bottom of the engine and acts as the reservoir for engine oil. The lubrication system draws oil from the pan, and the oil drains back into it. The listed applications use one pan.
- Steel construction: the pan is made of steel.
- Drain plug included: ships with a drain plug, with an M14 x 1-1/2 drain thread size.
- Non-baffled: the pan is not baffled, and no windage tray is included.
- Built to spec: Agility engineers its oil pans to match or surpass every OEM specification.
Agility is a North American company with distribution warehouses in Canada and the United States. It carries a full line of oil pans for a wide range of North American vehicles. Country of origin: Taiwan.
Signs this part may need replacing include oil seeping from the pan, a dented or punctured pan, and damaged drain threads. If the pan is the source of the leak, this replaces it. Follow the vehicle service information for the sealing method, fastener torque and oil refill.
Interchange: 264-260 · 311-00923 · 311-01031
264260 · 31100923 · 31101031 · KCRP34A · KCRP68A · 4893207AA · 53021334AF · CRP34A
This part cross-references / interchanges with the following part numbers:
KCRP34A, KCRP68A, 4893207AA, 53021334AF, 264-260, 311-00923, 311-01031, CRP34A
