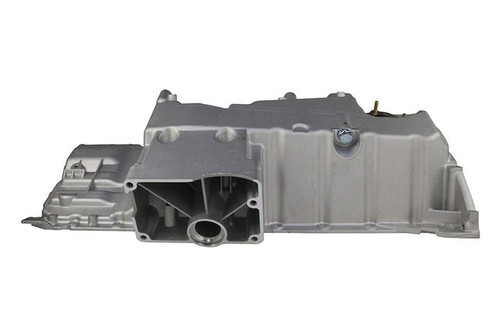

Agility 3310114 oil pan for the 2001-2005 BMW 325xi 6-cylinder 2.5L, the 2006 325xi 6-cylinder 3.0L and other vehicles closes the bottom of the engine and holds the oil supply. The oil sits in this pan until the oil pump draws it back into the engine.
- Aluminum construction
- M12 X 1-1/2 drain thread
- Not baffled
Quick facts
- Part: Agility 3310114 oil pan
- Also called: engine oil pan
- Fits: the 2001-2005 BMW 325xi 6-cylinder 2.5L, the 2006 325xi 6-cylinder 3.0L and other vehicles
- Material: Aluminum
- Condition: New
Oil spots where the car is parked, a dent or crack in the pan, or damaged drain plug threads can mean the pan needs replacing. A leaking valve cover gasket, a worn rear main seal or a loose oil filter housing can leave oil in the same area, so find the cause before buying a new pan.
Fits
This is also an oil pan for the 2004-2006 BMW X3 6-cylinder 2.5L or 3.0L and the 2001-2006 BMW 330xi 6-cylinder 3.0L. It is a direct-fit replacement for these cars, built to OE-level specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Drain thread size: M12 X 1-1/2
Build and materials
- Material: Aluminum
- Construction: Not baffled
- Condition: New
- Country of origin: China
In the box
One oil pan with its drain plug. This listing holds one pan, and the car takes one. A windage tray is not included.
Interchange: 264-632 · 311-58665
11137502663 · 11137511600 · 11137519432 · BMP03A
This part cross-references / interchanges with the following part numbers:
11137502663, 11137511600, 11137519432, 264-632, 311-58665, BMP03A
Frequently Asked Questions
Does the Agility 3310114 oil pan fit the 2004-2006 BMW X3 6-cylinder 2.5L or 3.0L?
Yes. Agility 3310114 fits the 2004-2006 BMW X3 6-cylinder 2.5L or 3.0L.
Does this Agility oil pan come with a drain plug?
Yes. The Agility 3310114 comes with its drain plug, which has an M12 X 1-1/2 thread.
Is the Agility 3310114 engine oil pan aluminum?
Yes, the pan is aluminum. It is not baffled, and no windage tray is included.
How can I tell if this oil pan is leaking or damaged?
Oil spots where the car is parked, a dented or cracked pan, or stripped drain plug threads can point to a bad pan. Look with the engine off and cool; a shop can check what you can't see.
Does 11137502663 cross to this oil pan?
Yes. 11137502663 is one of the numbers the Agility 3310114 replaces, along with 11137511600 and 11137519432.
