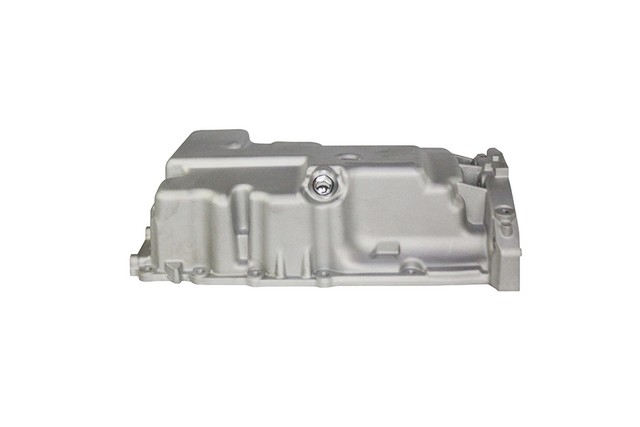

Give your engine a solid, leak-free oil reservoir with the Agility Auto Parts Engine Oil Pan 3310120. It installs as a direct-fit replacement for the 2010-2013 Mazda 3 (L4-2.5L), 2012-2014 Mazda 5 (L4-2.5L), 2011-2013 Mazda 6 (L4-2.5L and V6-3.7L), and 2010-2012 Mazda CX-7 (L4-2.5L). Bolted to the bottom of the block, the pan holds the oil supply the pump draws from and provides the drain point for routine oil changes.
- Aluminum construction: built from aluminum for the listed applications.

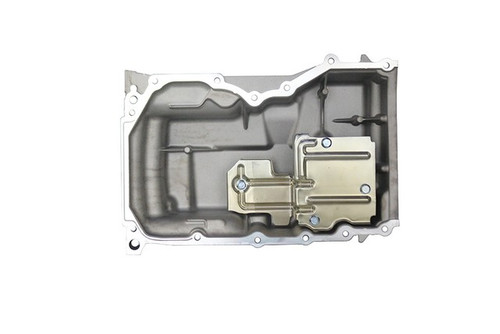

- Baffled: internal baffling helps control oil movement inside the pan during driving.
- Drain plug included: ships with a drain plug and an M14 x 1-1/2 drain thread size.
- OE-level tolerances: engineered to meet or exceed OEM specifications.
This oil pan does not include a windage tray. Agility offers a broad line of engine oil pans covering many North American vehicle applications, backed by distribution in both Canada and the United States. Country of origin: China.
Manufacturer part number 3310120.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What is this part and what does it do?
It's the Agility Auto Parts engine oil pan (3310120) — the aluminum reservoir that bolts to the bottom of the block, holds the oil the pump draws from, and provides the drain point for oil changes.
Which vehicles does the 3310120 oil pan fit?
It's a direct-fit replacement for the 2010-2013 Mazda 3, 2012-2014 Mazda 5, 2011-2013 Mazda 6 (L4-2.5L and V6-3.7L), and 2010-2012 Mazda CX-7 with the L4-2.5L. See the Buyer's Guide tab for details.
Does it come with a drain plug?
Yes. This oil pan includes a drain plug and uses an M14 x 1-1/2 drain thread size.
Is a windage tray included?
No. A windage tray is not included with this oil pan.
What are the signs I may need a new oil pan?
Oil seepage or drips from the bottom of the engine, a dented or cracked pan, or damaged/stripped drain plug threads are signs the pan may need replacing. Diagnose the source of any leak before replacing.
