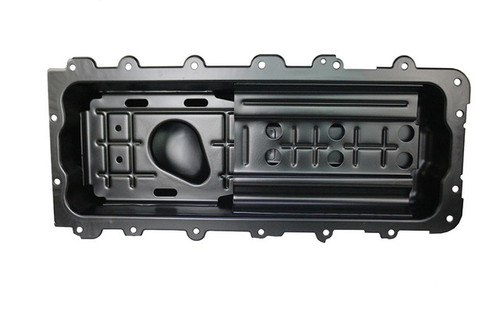

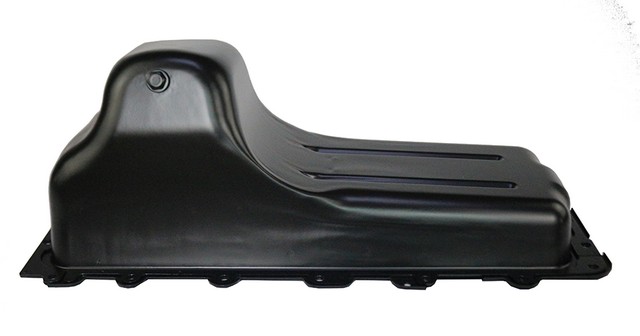

Agility 3310185 oil pan for the 1999-2014 Ford F-450 Super Duty V10 6.8L and other vehicles collects and holds the engine's oil at the bottom of the engine. Agility engineers this engine oil pan to meet or exceed every OEM specification.
- Steel pan
- Baffled design
- Drain plug included, with an M14 x 1-1/2 drain thread
Quick facts
- Part: Agility 3310185 oil pan
- Also called: engine oil pan
- Fits: 1999-2014 Ford F-450 Super Duty V10 6.8L and other vehicles
- Material: Steel
- Condition: New
A leaking pan can show up as oil spots where the vehicle is parked, a dropping oil level on the dipstick (checked with the engine off) or visible dents or cracks. Before replacing the pan, work out where the oil is really coming from, because a drain plug or gasket can leak the same way; a shop can inspect underneath.
Fits
This oil pan is listed for a wide range of Ford models, including the 1999-2014 Ford F-550 Super Duty V10 6.8L and the 1999-2010 Ford F-250 Super Duty V10 6.8L. Open the "Vehicles it fits" section to check your exact model and engine. A 1999-2014 Ford F-450 Super Duty V10 6.8L takes one pan.
Specifications
Fit and size
- Quantity per vehicle: 1
- Drain thread size: M14 x 1-1/2
Build and materials
- Material: Steel
- Construction: Baffled
- Condition: New
- Country of origin: China
In the box
One oil pan with a drain plug. A windage tray is not included.
Interchange: 264-447 · 311-00853
KFP66A · F81Z6675DA · FP66A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
KFP66A, 264-447, F81Z6675DA, 311-00853, FP66A
Frequently Asked Questions
Does the Agility 3310185 oil pan fit the 1999-2014 Ford F-550 Super Duty V10 6.8L?
Yes. Agility 3310185 is listed for the 1999-2014 Ford F-550 Super Duty V10 6.8L, which takes one pan. Open the "Vehicles it fits" section to check other models and engines.
Does the Agility 3310185 oil pan come with a drain plug?
Yes. Agility 3310185 includes the drain plug, with an M14 x 1-1/2 drain thread. A windage tray is not included.
What is the Agility 3310185 oil pan made of?
Agility 3310185 is a steel oil pan, and it is baffled.
What does a damaged steel oil pan look like?
Visible dents, cracks or oil spots where the vehicle is parked can mean the pan is damaged. A shop can check the underside safely.
Does the Agility 3310185 oil pan replace number F81Z6675DA?
Yes. F81Z6675DA is one of the numbers on the Interchange line for Agility 3310185 on this page.
