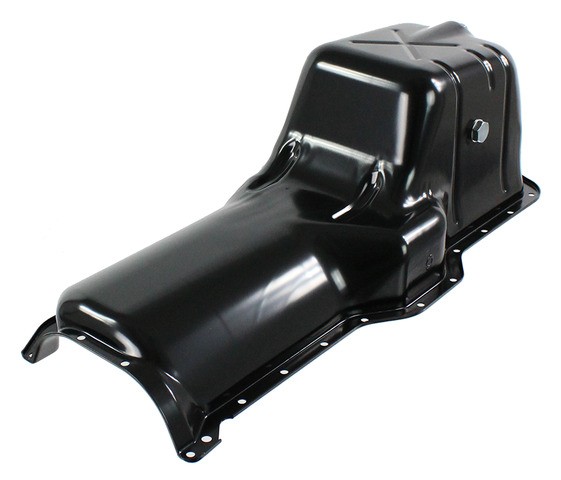

Hold your engine's oil supply at the base of the block with the Agility Auto Parts Oil Pan 3310552. This direct-fit Jeep Wrangler oil pan fits 1992-1995 models, and it also fits the 1993-1997 Jeep Cherokee and 1993-1996 Jeep Grand Cherokee, all with the L6-4.0L engine. The listed applications use one pan, and a drain plug comes with it.
The oil pan forms the reservoir at the bottom of the engine. The oil pump draws oil from it, and oil drains back into it as it circulates. A leaking, dented or rusted pan, or one with damaged drain threads, is a common reason to replace it.
- Steel construction: the pan is made of steel.
- Baffled: internal baffling helps control oil movement inside the pan.
- Drain plug included: the drain thread size is 1/2 in-20. A windage tray is not included.
- Built to OE-level tolerances: Agility states that it engineers its oil pans to match or better every OEM specification.
Agility is a North American company with distribution warehouses in Canada and the United States. Country of origin: China.
Before installing, check the vehicle service information for the correct sealing method and fasteners, and for whether the original fasteners may be reused.
Interchange: 264-220 · 311-00732
264220 · 31100732 · KCRP6B · 53020108 · 53020833 · 53020833AB · CRP06B
This part cross-references / interchanges with the following part numbers:
KCRP6B, 53020108, 53020833, 53020833AB, 264-220, 311-00732, CRP06B
Frequently Asked Questions
What does an engine oil pan do?
It forms the oil reservoir at the bottom of the engine. The oil pump draws oil from it, and oil drains back into it as it circulates.
Is this an oil pan for the 1993-1996 Jeep Grand Cherokee 4.0L?
Yes. It is a direct-fit replacement for the 1993-1996 Jeep Grand Cherokee with the L6-4.0L engine, and the listed applications use one pan.
Will this work as an oil pan for the 1993-1997 Jeep Cherokee 4.0L?
Yes. It fits the 1993-1997 Jeep Cherokee with the L6-4.0L engine. The "Vehicles it fits" section shows the other listed vehicles.
What comes in the box?
One steel, baffled oil pan with a drain plug. The drain thread size is 1/2 in-20. A windage tray is not included.
What are signs the oil pan may need replacing?
Signs include oil seeping from the pan body, dents or punctures from road debris, heavy rust, or stripped drain-plug threads. Find the source of any leak before replacing the pan.
