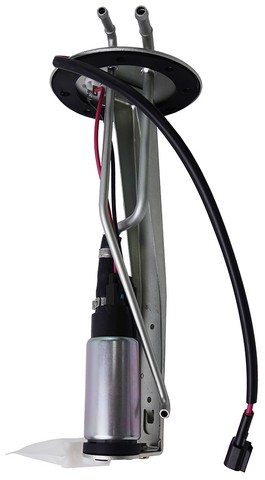

Restore steady fuel delivery to your engine with the Agility Auto Parts Fuel Pump and Sender Assembly (P/N 4010010). This in-tank unit combines the electric fuel pump with the level sender, and it drops in as a direct-fit replacement for the 1989-1991 Isuzu Trooper (V6-2.8L) and the 1991-1992 Isuzu Rodeo (V6-3.1L).
Agility offers a complete line of fuel pump and sender assemblies covering a wide range of North American vehicle applications, engineered and manufactured in a highly automated, dust-free environment to meet or exceed OEM specifications.
- Rated output: 12 V DC, with a maximum flow rating of 60 U.S. gallons per hour and a maximum pressure of 30 PSI.
- Inlet and outlet: strainer-style inlet with a barbed outlet measuring 0.3125 in outside diameter.
- Tested for reliability: checked for pressure characteristics, flow rates, electrostatic discharge, and 100% leak tested.
- Drop-in ready: supplied as a drop-in replacement right out of the box with the necessary components included.
Common signs the original assembly may need replacing include hard starting, stalling, loss of fuel pressure, or an inaccurate fuel gauge reading. Country of origin: China.
Interchange: E8205H · P72191 · 8943696400 · 8970191890 · 8970191891 · 8970693381 · SP4103H · USEP8205H
This part cross-references / interchanges with the following part numbers:
E8205H, P72191, 8943696400, 8970191890, 8970191891, 8970693381, SP4103H, USEP8205H
Frequently Asked Questions
Which vehicles does this fuel pump and sender assembly fit?
It is a direct-fit replacement for the 1989-1991 Isuzu Trooper (V6-2.8L) and the 1991-1992 Isuzu Rodeo (V6-3.1L). Confirm your engine in the "Vehicles it fits" section.
What are the flow and pressure ratings?
The assembly operates on 12 V DC with a maximum flow rating of 60 U.S. gallons per hour and a maximum pressure of 30 PSI.
What does this assembly do?
It combines the in-tank electric fuel pump with the fuel-level sender, delivering fuel to the engine while signaling the tank level to the gauge.
What are the inlet and outlet details?
It uses a strainer-style inlet and a barbed outlet with a 0.3125 in outside diameter.
How is the assembly tested?
Each unit is checked for pressure characteristics, flow rates, and electrostatic discharge, and receives 100% leak testing, and is built to meet or exceed OEM specifications.
