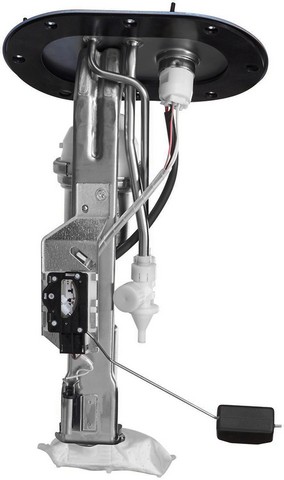

Agility 4011408 fuel pump and sender assembly for the 2006-2008 Subaru Forester H4 2.5L and other vehicles pumps fuel from the tank to the engine and sends the tank level to the fuel gauge. It is built to OE-level specifications and combines the pump and the fuel level sender in one unit.
- Arrives ready to use right out of the box
- Highly automated, dust-free production environment
- Tested for pressure characteristics, flow rates and electrostatic discharge, with 100% leak testing
- Maximum flow rating of 50 U.S. gallons per hour and maximum pressure of 60 psi
Quick facts
- Part: Agility 4011408 fuel pump and sender assembly
- Fits: 2006-2008 Subaru Forester H4 2.5L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean this fuel pump and sender assembly is worn, though a clogged fuel filter or a faulty fuel pump relay can also be behind that trouble, so find the cause before you replace the assembly.
Fits
This fuel pump and sender assembly fits the 2006-2008 Subaru Forester H4 2.5L, the 2006-2007 Subaru Impreza H4 2.5L and the 2006 Saab 9-2X H4 2.5L, with a single assembly per car.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet outside diameter: 0.3125 in
- Inlet type: Strainer
- Outlet type: Quick Connect
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 50 U.S. gallons per hour
- Maximum pressure: 60 psi
- Condition: New
- Country of origin: China
In the box
One fuel pump and sender assembly with all the necessary components included.
Interchange: P77117S · HP10250 · SP4156H · 42021SA070
This part cross-references / interchanges with the following part numbers:
P77117S, HP10250, SP4156H, 42021SA070
Frequently Asked Questions
Is this a fuel pump replacement for the 2006-2008 Subaru Forester H4 2.5L?
Yes. Agility 4011408 fits the 2006-2008 Subaru Forester H4 2.5L, and that vehicle takes one assembly.
Does this fuel pump work on the 2006-2007 Subaru Impreza H4 2.5L?
Yes. Agility 4011408 fits the 2006-2007 Subaru Impreza H4 2.5L, which takes one assembly.
Does the Agility 4011408 come with the components needed to install it?
Yes. The assembly arrives with all the necessary components included and is ready to use right out of the box.
What are the flow and pressure ratings of this fuel pump and sender assembly?
This assembly has a maximum flow rating of 50 U.S. gallons per hour and a maximum pressure of 60 psi. It runs on 12 volts DC and has a quick connect outlet.
How is this fuel pump and sender assembly tested?
Agility 4011408 is tested for pressure characteristics, flow rates and electrostatic discharge, and it gets 100% leak testing.
