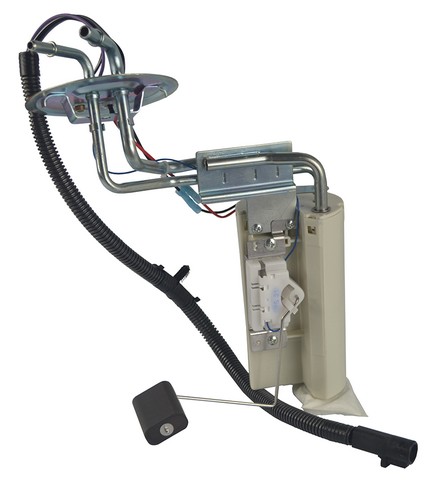

Keep fuel moving to your Ford F-Series with the Agility Auto Parts Fuel Pump Hanger 4011015, a left-side in-tank hanger that carries the fuel-delivery components and routes fuel from the tank toward the engine. It's a direct-fit replacement for the 1992-1997 Ford F-150 with the 4.9L, 5.0L or 5.8L engine, the 1992-1997 Ford F-250 and F-350 with the 4.9L, 5.0L, 5.8L or 7.5L engine, and the 1990-1996 Ford F-Super Duty 7.5L; covered engines include the L6-4.9L, V8-5.0L, V8-5.8L and V8-7.5L. Check the "Vehicles it fits" section for the exact year-and-engine match for your truck.
- Complete drop-in unit: installs right out of the box with the necessary components included.
- Fuel-delivery specs: strainer-type inlet, quick-connect outlet with a 0.375 in outside diameter, flow up to 26 U.S. gallons per hour, a maximum rating of 131 PSI, and 12-volt DC operation.
- Tested quality: checked for pressure characteristics, flow rates and electrostatic discharge, with 100% leak testing.
- Engineered build: produced in a highly automated, dust-free environment and built to OE-level tolerances.
A worn hanger can show up as hard starting, sputtering or hesitation under load, or fuel seepage around the tank. If a failed hanger is the cause, this unit replaces it. Country of origin: Thailand.
Interchange: E2037H · P77398H · HP10277 · F6TZ9A407BB · SP2006H · USEP12302M
This part cross-references / interchanges with the following part numbers:
E2037H, P77398H, HP10277, F6TZ9A407BB, SP2006H, USEP12302M
Frequently Asked Questions
Does this Agility hanger fit my Ford truck?
It's a direct fit for the 1992-1997 Ford F-150 4.9L, 5.0L or 5.8L, the 1992-1997 Ford F-250 and F-350 4.9L, 5.0L, 5.8L or 7.5L, and the 1990-1996 Ford F-Super Duty 7.5L. Check the "Vehicles it fits" section to match your year and engine.
What's included with the fuel pump hanger assembly 4011015?
It installs right out of the box with the necessary components included, so there's no separate kit to buy.
What are the flow and pressure specs?
It has a strainer inlet and a quick-connect outlet (0.375 in OD), flows up to 26 U.S. gallons per hour, is rated to a maximum of 131 PSI, and runs on 12 volts DC.
What are signs the fuel pump hanger may need replacing?
Hard starting, engine sputtering or hesitation under load, or fuel leaking near the tank can be signs. Diagnose the cause first, since these symptoms can have other sources.
What numbers does part 4011015 interchange with?
It replaces E2037H, P77398H, HP10277, F6TZ9A407BB, SP2006H and USEP12302M.
