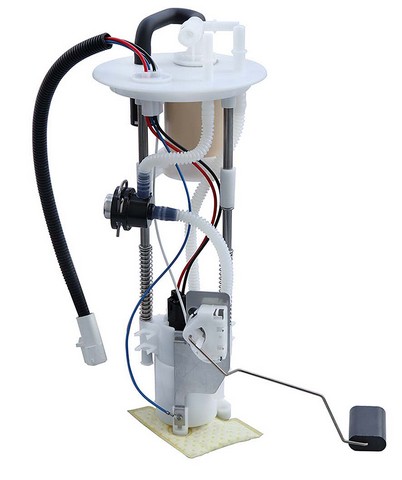

Agility 4010287 fuel pump module for the 2001-2003 Ford Ranger 4-cylinder 2.3L, V6 3.0L or 4.0L moves fuel from the tank to the engine. Production is held to OEM specifications or better.
- Highly automated, dust-free production environment
- 100% leak testing on every module
- Performance testing covers pressure characteristics, flowrates and electrostatic discharge
- Ready to install out of the box with all the necessary components included
Quick facts
- Part: Agility 4010287 fuel pump module
- Also called: fuel pump assembly
- Fits: 2001-2003 Ford Ranger 4-cylinder 2.3L, V6 3.0L or 4.0L
- Condition: New
A weak fuel pump module can show up as hard starting, sputtering under load or a whine from the tank, though other fuel-system faults cause the same signs. Before replacing it, look over the fuel pump fuse and its connector with the engine off. A shop can test fuel pressure.
Fits
The 2001-2003 Ford Ranger takes one module, with the 4-cylinder 2.3L, V6 3.0L or 4.0L engine. It is a direct-fit replacement for these vehicles.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: strainer
- Outlet type: quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Condition: New
- Supplied as a kit
- Voltage: 12 V DC
- Maximum flow rating: 55 U.S. gallons per hour
- Maximum pressure: 85 psi
- Country of origin: Thailand
In the box
One fuel pump module assembly, supplied as a kit.
Interchange: 323-01767
E2295M · P74997M · FG0871 · 1L5Z9H307EA · 1L5Z9H307EE · 3L5Z9H307EA · 3L5Z9H307EC · SP2027M · USEP2295M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Does the Agility 4010287 fit a 2001-2003 Ford Ranger with the V6 4.0L engine?
Yes. Agility 4010287 fits the 2001-2003 Ford Ranger with the 4-cylinder 2.3L, V6 3.0L or 4.0L engine, with one module per vehicle.
What are the flow and pressure ratings of the Agility 4010287 module?
Agility 4010287 has a maximum flow rating of 55 U.S. gallons per hour and a maximum pressure of 85 psi. It runs on 12 V DC.
What kind of fuel line connection does this module use?
The outlet is a quick connect with a 0.375 in outside diameter, and the inlet is a strainer.
Does this fuel pump assembly come as a kit with the other parts included?
Yes. Agility 4010287 is supplied as a kit with the necessary components included.
Does Agility 4010287 replace the number 1L5Z9H307EA?
Yes. 1L5Z9H307EA is one of the interchange numbers listed for Agility 4010287, along with 1L5Z9H307EE, 3L5Z9H307EA and 3L5Z9H307EC.
