    Part number: 4010300
    UPC: 887548185457

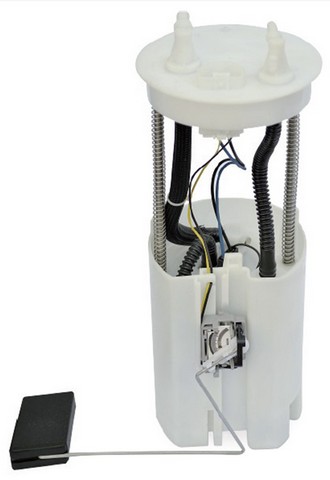

    Agility Autoparts Fuel Pump Module Assembly P/N:4010300
    Agility Autoparts Fuel Pump Module Assembly P/N:4010300
    $119.99
    $119.99

    Keep fuel flowing to the injectors with the Agility Auto Parts Fuel Pump Module Assembly 4010300, a drop-in fuel pump assembly for the 2001-2002 Acura MDX (V6-3.5L) and the 2003-2004 Honda Pilot (V6-3.5L). This module draws fuel from the tank and delivers it under pressure to the engine, arriving out of the box with the components needed to replace a worn or failed original unit.

    • Integrated design: Strainer inlet feeds the pump, with a Quick Connect outlet measuring 0.375 in outside diameter.
    • Rated output: Runs on 12V DC with a maximum flow rating of 50 U.S. gallons per hour and a maximum pressure of 100 PSI.
    • Tested to spec: Engineered and built to meet OE specifications, with 100% leak testing plus pressure, flow-rate, and electrostatic-discharge checks.
    • Drop-in replacement: Installs with the necessary components included for the listed applications.

    Signs the original module may need replacing include hard starting, sputtering under load, loss of power, or a no-start condition tied to fuel delivery. Diagnose the cause before ordering, since these symptoms can have other sources. Country of origin: Thailand.

    Interchange: 323-59173 · 323-59197
    32359173 · 32359197 · E8720M · FG0957 · 170445S3VA00 · 17045S3VA00 · SP8021M · USEP8720M

    This part cross-references / interchanges with the following part numbers:

    E8720M, FG0957, 323-59173, 323-59197, 170445S3VA00, 17045S3VA00, SP8021M, USEP8720M

    Frequently Asked Questions

    What vehicles does the Agility 4010300 fuel pump module fit?

    It is a direct-fit replacement for the 2001-2002 Acura MDX (V6-3.5L) and the 2003-2004 Honda Pilot (V6-3.5L). Check the "Vehicles it fits" section to confirm your vehicle.

    What are the flow and pressure ratings?

    The module has a maximum flow rating of 50 U.S. gallons per hour and a maximum pressure of 100 PSI, and it operates on 12V DC.

    What type of inlet and outlet does it use?

    It has a strainer-type inlet and a Quick Connect outlet with a 0.375 in outside diameter.

    Does it come ready to install?

    Yes. Agility fuel module assemblies are drop-in replacements out of the box with the necessary components included for the listed applications.

    How is the module tested?

    Each unit undergoes 100% leak testing along with pressure, flow-rate, and electrostatic-discharge checks, and is built to meet OE specifications.
