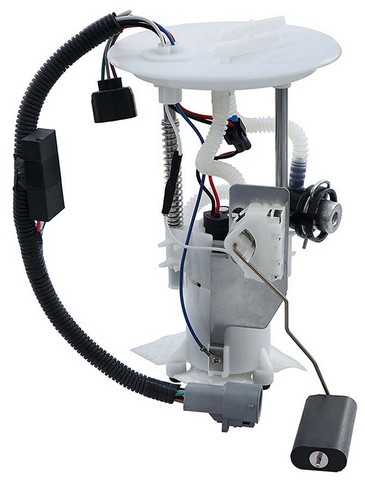

Agility 4010313 fuel pump module for the 2002-2003 Ford Explorer V6 4.0L and other vehicles delivers fuel from the tank to the engine.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge, plus 100% leak testing
- Kit with all the necessary components included
- Maximum flow rating of 60 U.S. gallons per hour and maximum pressure of 120 psi
- Strainer inlet and quick-connect outlet
Quick facts
- Part: Agility 4010313 fuel pump module
- Also called: fuel pump assembly
- Fits: 2002-2003 Ford Explorer V6 4.0L and other vehicles
- Condition: New
A fuel pump module that is wearing out can show up as hard starting, sputtering under load or a whine from the tank. A clogged fuel filter, a failed relay or a blown fuse can be behind those signs too, so find the cause before buying a new module. This listing is one module, and the 2002-2003 Ford Explorer V6 4.0L takes one.
Fits
It is a direct-fit replacement for the 2002-2003 Ford Explorer V6 4.0L and the 2002-2003 Mercury Mountaineer V6 4.0L, and it meets or exceeds all OEM specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 in
- Voltage: 12 V DC
- Maximum flow rating: 60 U.S. gallons per hour
- Maximum pressure: 120 psi
Build and materials
- Inlet type: strainer
- Outlet type: quick connect
- Kit included
- Condition: new
- Country of origin: Thailand
In the box
One fuel pump module kit with all the necessary components included.
Interchange: 323-01746
E2352M · P76170M · FG0863 · 2L2Z9H307GB · 2L2Z9H307GC · SP2060M · USEP2352M
This part cross-references / interchanges with the following part numbers:
E2352M, P76170M, FG0863, 2L2Z9H307GB, 2L2Z9H307GC, 323-01746, SP2060M, USEP2352M
Frequently Asked Questions
Will the Agility 4010313 fuel pump module fit a 2002-2003 Mercury Mountaineer V6 4.0L?
Yes. Agility 4010313 fits the 2002-2003 Mercury Mountaineer V6 4.0L as well as the 2002-2003 Ford Explorer V6 4.0L.
Does this fuel pump module kit include the necessary components?
Yes. This fuel pump module is sold as a kit with all the necessary components included. The listing is one module.
What flow rate and pressure is the Agility 4010313 rated for?
Agility 4010313 has a maximum flow rating of 60 U.S. gallons per hour and a maximum pressure of 120 psi, on a 12 V DC supply.
What kind of outlet does this fuel pump assembly have?
This fuel pump module has a quick-connect outlet with a 0.375 in outside diameter, and a strainer on the inlet.
Does the Agility 4010313 interchange with 2L2Z9H307GB?
Yes. 2L2Z9H307GB is one of the numbers Agility 4010313 replaces, along with 2L2Z9H307GC and 323-01746.
