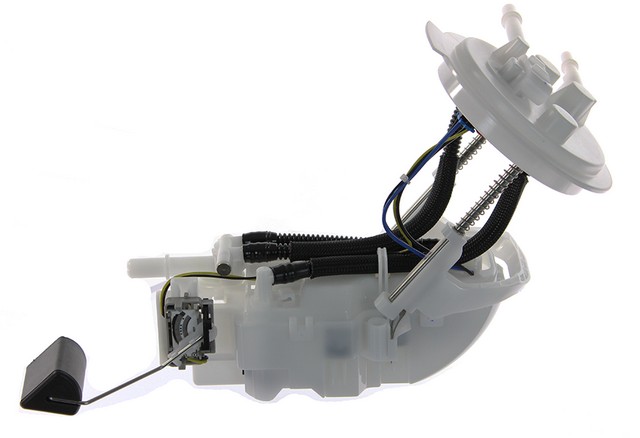

Agility 4010373 fuel pump module for the 2003-2004 Cadillac CTS V6 3.2L delivers fuel from the tank to the engine. You may also see it listed as a fuel pump assembly.
- Tested for pressure characteristics, flowrates and electrostatic discharge
- 100% leak testing on the module
- Engineered and manufactured in a highly automated, dust-free environment
- Rated for up to 50 U.S. gallons per hour and 110 psi at 12 volts DC
- Strainer inlet and quick-connect outlet with a 0.375 in outside diameter
Quick facts
- Part: Agility 4010373 fuel pump module
- Also called: fuel pump assembly
- Fits: 2003-2004 Cadillac CTS V6 3.2L
- Condition: New
Hard starting, stalling or a whine from the tank can mean the fuel pump module is wearing out. These signs alone do not prove it is the problem, because a clogged fuel filter is another common cause.
Fits
This fuel pump module is a direct-fit replacement for the 2003-2004 Cadillac CTS V6 3.2L, and it meets or exceeds all OEM specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 in
Build and materials
- Type: fuel pump module assembly
- Inlet type: strainer
- Outlet type: quick connect
- Voltage: 12 V DC
- Maximum flow rating: 50 U.S. gallons per hour
- Maximum pressure: 110 psi
- Condition: New
- Country of origin: China
In the box
One fuel pump module, with the necessary components included. This listing holds one module, and the 2003-2004 Cadillac CTS V6 3.2L takes one.
Installation notes
- Comes ready to drop in right out of the box.
Interchange: 323-01421
E3606M · P74840M · FG1216 · 19120684 · 19206462 · 25679320 · SP6613M · USEP3606M
This part cross-references / interchanges with the following part numbers:
E3606M, P74840M, FG1216, 19120684, 19206462, 25679320, 323-01421, SP6613M, USEP3606M
Frequently Asked Questions
Is the Agility 4010373 fuel pump module the right one for the 2003-2004 Cadillac CTS V6 3.2L?
Yes. Agility 4010373 is a direct-fit fuel pump module for the 2003-2004 Cadillac CTS V6 3.2L, which takes one.
Does this fuel pump module come with the parts needed to install it?
Yes. It is a drop-in unit with the necessary components included, and this listing is one module.
What flow rate and pressure is the Agility 4010373 fuel pump module rated for?
Agility 4010373 is rated for a maximum flow of 50 U.S. gallons per hour and a maximum pressure of 110 psi, running on 12 volts DC.
What type of fuel line connection does this fuel pump module have?
The outlet is a quick-connect type with a 0.375 in outside diameter, and the inlet uses a strainer.
What testing do these fuel pump modules go through?
They are tested for pressure characteristics, flowrates and electrostatic discharge, and they also get 100% leak testing.
