Fuel Pump Module for 2004-2006 Chevrolet Express 3500 & More - Agility 4010419

$114.99

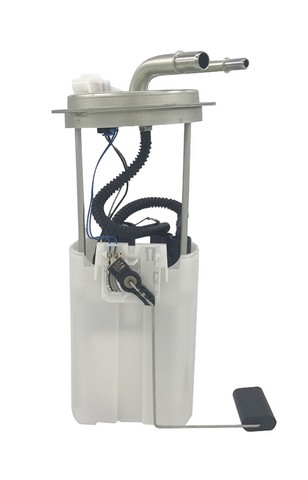

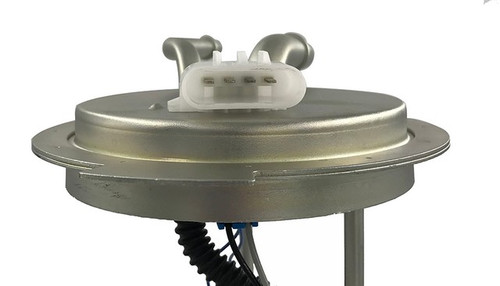

Agility Autoparts Fuel Pump Module Assembly 4010419
Agility Autoparts Fuel Pump Module Assembly 4010419 - view 2
Agility Autoparts Fuel Pump Module Assembly 4010419 - view 3
Agility Autoparts Fuel Pump Module Assembly 4010419
Agility Autoparts Fuel Pump Module Assembly 4010419 - view 2
Agility Autoparts Fuel Pump Module Assembly 4010419 - view 3

Vehicles this part fits
    Part number: 4010419
    UPC: 887548186645
    Condition: New
    Weight: 6.52 LBS
    Item Package Quantity: 1
    $114.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Agility Autoparts Fuel Pump Module Assembly P/N:4010419
    Agility Autoparts Fuel Pump Module Assembly P/N:4010419
    $114.99
    $114.99

    Agility 4010419 fuel pump module for the 2004-2006 Chevrolet Express 3500 V8 6.0L and other vehicles pumps fuel from the tank toward the engine.

    • Engineered and built in a highly automated, dust-free environment
    • Tested for pressure characteristics, flowrates and electrostatic discharge, plus 100% leak testing
    • Quick-connect outlet with a 0.375 in outside diameter
    • Strainer inlet on the pump
    • Maximum flow of 60 U.S. gallons per hour and maximum pressure of 62 psi on 12 V DC

    Quick facts

    • Part: Agility 4010419 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2004-2006 Chevrolet Express 3500 V8 6.0L and other vehicles
    • Condition: New

    An engine that cranks but will not start, sputtering under load or a whine from the tank area can mean the pump is weakening. Before you replace the module, rule out a blown fuse, a faulty relay or a wiring fault, which can also keep the pump from running.

    Fits

    It fits the 2004-2006 Chevrolet Express 3500 V8 6.0L and the 2004-2006 GMC Savana 3500 V8 6.0L; each takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Outlet outside diameter: 0.375 in
    • Maximum flow rating: 60 U.S. gallons per hour
    • Maximum pressure: 62 psi
    • Voltage: 12 V DC

    Build and materials

    • Inlet type: strainer
    • Outlet type: quick connect
    • Condition: new
    • Country of origin: China

    In the box

    One fuel pump module, supplied as a kit.

    Installation notes

    • Comes ready to install out of the box.
    • The kit includes the necessary components for the replacement.

    Interchange: E3580M · P76092M · FG0403 · 19133510 · 19133511 · 25362733 · SP3682M · USEP3580M

    This part cross-references / interchanges with the following part numbers:

    E3580M, P76092M, FG0403, 19133510, 19133511, 25362733, SP3682M, USEP3580M

    Frequently Asked Questions

    Is the Agility 4010419 fuel pump module right for a 2004-2006 Chevrolet Express 3500 V8 6.0L?

    Yes. Agility 4010419 fits the 2004-2006 Chevrolet Express 3500 V8 6.0L, and the 2004-2006 GMC Savana 3500 V8 6.0L takes it too. Each takes one module.

    Does the Agility 4010419 fuel pump assembly come as a kit?

    Yes. It is supplied as a kit with the necessary components included and is ready to install out of the box. The listing is for one module.

    What outlet and flow rating does this fuel pump module have?

    This fuel pump module has a quick-connect outlet with a 0.375 in outside diameter and a strainer inlet. Maximum flow is 60 U.S. gallons per hour at up to 62 psi on 12 V DC.

    My engine cranks but won't start; could the fuel pump module be the reason?

    A no-start, sputtering under load or a whine from the tank area can be signs of a weak pump. Fuel pressure testing involves the fuel system, so a shop should do it.

    Does Agility 4010419 replace number 19133510?

    Yes. 19133510 is on the Interchange list for Agility 4010419, along with E3580M, P76092M and several other numbers.
