Fuel Pump Module for 2004-2005 Chevrolet Express 3500 & More - Agility 4010429

$168.99
Agility Autoparts Fuel Pump Module Assembly 4010429

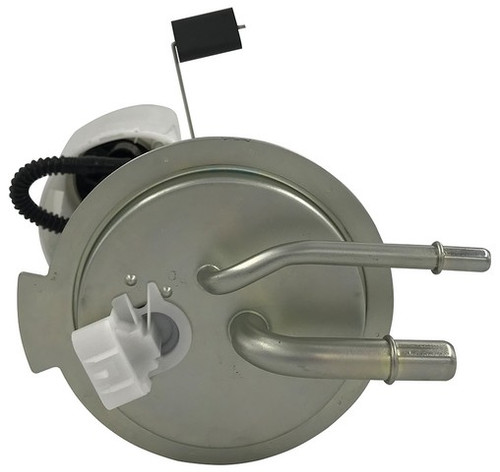

Agility Autoparts Fuel Pump Module Assembly 4010429 - view 2
Agility Autoparts Fuel Pump Module Assembly 4010429 - view 3
Agility Autoparts Fuel Pump Module Assembly 4010429
Agility Autoparts Fuel Pump Module Assembly 4010429 - view 2
Agility Autoparts Fuel Pump Module Assembly 4010429 - view 3

Vehicles this part fits
    Part number: 4010429
    UPC: 887548186744
    Condition: New
    Weight: 12.29 LBS
    Item Package Quantity: 1
    $168.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

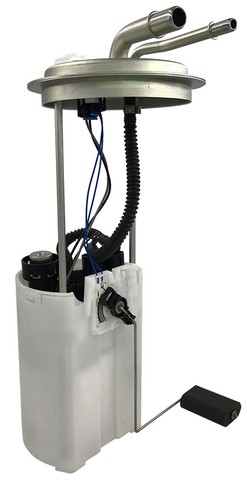

    Agility Autoparts Fuel Pump Module Assembly P/N:4010429
    Agility Autoparts Fuel Pump Module Assembly P/N:4010429
    $168.99
    $168.99

    Agility 4010429 fuel pump module for the 2004-2005 Chevrolet Express 3500 V8 6.0L, the 2005 Express 3500 V8 4.8L and other vehicles sends fuel from the tank to the engine. It is built to OEM specifications.

    • Maximum flow rating of 70 U.S. gallons per hour and maximum pressure of 115 psi
    • Strainer inlet and a quick-connect outlet with a 0.375 in outside diameter
    • Tested for pressure characteristics, flow rates and electrostatic discharge, with 100% leak testing
    • Built in a highly automated, dust-free environment

    Quick facts

    • Part: Agility 4010429 fuel pump module
    • Also called: fuel pump assembly
    • Fits: the 2004-2005 Chevrolet Express 3500 V8 6.0L, the 2005 Express 3500 V8 4.8L and other vehicles
    • Condition: New

    Hard starting, stalling or sputtering under load and a loss of power can mean the fuel pump module is worn, though a clogged fuel filter or a failing fuel pump relay can also be behind them. Each vehicle takes one module.

    Fits

    It fits the 2004-2005 Chevrolet Express 3500 V8 6.0L and the 2005 Express 3500 V8 4.8L, plus the 2004-2005 GMC Savana 3500 V8 6.0L and the 2005 Savana 3500 V8 4.8L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet type: Strainer
    • Outlet type: Quick Connect
    • Outlet outside diameter: 0.375 in

    Build and materials

    • Voltage: 12 V DC
    • Maximum flow rating: 70 U.S. gallons per hour
    • Maximum pressure: 115 psi
    • Condition: New
    • Country of origin: Thailand

    In the box

    One fuel pump module, supplied as a kit.

    Installation notes

    • Ready to install out of the box, with all the necessary components included.

    Interchange: P76092M · FG0403 · 89060657 · USEP3580M

    This part cross-references / interchanges with the following part numbers:

    P76092M, FG0403, 89060657, USEP3580M

    Frequently Asked Questions

    Is the Agility 4010429 fuel pump module right for the 2005 Chevrolet Express 3500 V8 4.8L?

    Yes. Agility 4010429 fits the 2005 Chevrolet Express 3500 V8 4.8L, and it also fits the 2004-2005 Express 3500 V8 6.0L.

    Does the 2004-2005 GMC Savana 3500 V8 6.0L take this fuel pump module?

    Yes. Agility 4010429 fits the 2004-2005 GMC Savana 3500 V8 6.0L and the 2005 Savana 3500 V8 4.8L.

    What flow and pressure rating does this fuel pump module have?

    Maximum flow is 70 U.S. gallons per hour and maximum pressure is 115 psi, on a 12-volt DC supply.

    Does the Agility 4010429 fuel pump assembly have a strainer on the inlet?

    Yes. The inlet type is a strainer, and the outlet is a quick-connect fitting with a 0.375 in outside diameter.

    What testing does this fuel pump module go through?

    This module is tested for pressure characteristics, flow rates and electrostatic discharge, and every unit gets 100% leak testing.

    Reviews

    No reviews yet — be the first to review this product.
