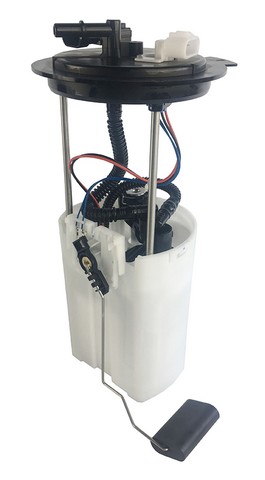

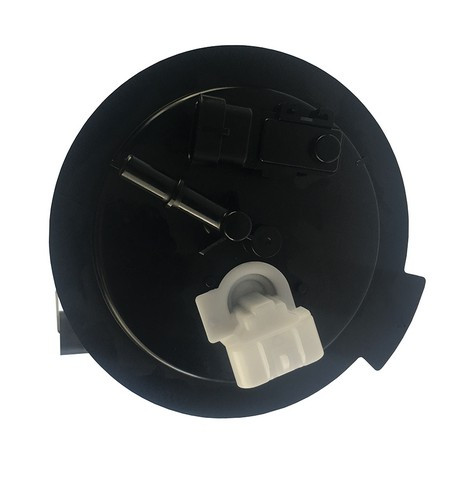

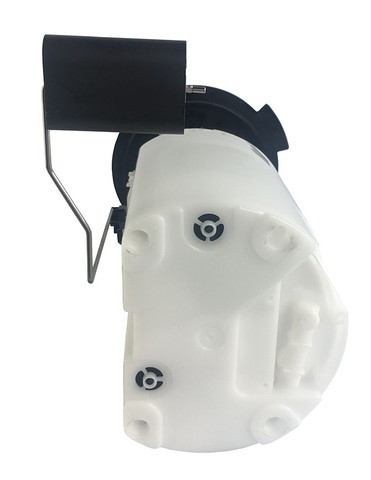

Agility 4010563 fuel pump module for the 2006-2007 Buick Lucerne V6 3.8L or V8 4.6L and other vehicles moves fuel from the tank to the engine. Also called a fuel pump assembly, it is built to a standard where OEM specifications are met or exceeded.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge
- 100% leak testing on every module
- Rated for up to 60 U.S. gallons per hour at 12 V DC
- Supplied with all the necessary components for installation
Quick facts
- Part: Agility 4010563 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006-2007 Buick Lucerne V6 3.8L or V8 4.6L and other vehicles
Hard starting, stalling or sputtering can mean the fuel pump module is worn, though a failed fuel pump relay or a blown fuse can sit behind those same signs, so find out which one it is before you buy.
Fits
This fuel pump module fits the 2006-2007 Buick Lucerne V6 3.8L or V8 4.6L and the 2006-2007 Cadillac DTS V8 4.6L, one module per car.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 in
- Outlet type: quick connect
- Inlet type: strainer
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 60 U.S. gallons per hour
- Supplied as a kit
- Country of origin: China
In the box
One fuel pump module, supplied as a kit.
Interchange: E3709M · P76236M · FG0433 · 15263190 · 19121824 · 19153051 · SP6433M · USEP3709M
This part cross-references / interchanges with the following part numbers:
E3709M, P76236M, FG0433, 15263190, 19121824, 19153051, SP6433M, USEP3709M
Frequently Asked Questions
Does the Agility 4010563 fuel pump module fit the 2006-2007 Cadillac DTS V8 4.6L?
Yes. Agility 4010563 fits the 2006-2007 Cadillac DTS V8 4.6L and also the 2006-2007 Buick Lucerne V6 3.8L or V8 4.6L, one module per car.
Does this fuel pump module come with its installation parts?
Yes. It is supplied as a kit with all the necessary components included, so it is ready to install right out of the box.
What flow rating and voltage does the Agility 4010563 fuel pump module have?
Agility 4010563 is rated for a maximum flow of 60 U.S. gallons per hour on 12 V DC. The outlet is a 0.375 in quick connect.
How do I know if this fuel pump module is going bad?
Hard starting, stalling or sputtering can be signs of a worn module. Pressure and flow tests need the engine running, so a shop can run them.
What testing do Agility fuel pump modules go through?
They are tested for pressure characteristics, flowrates and electrostatic discharge, and every module gets 100% leak testing.
