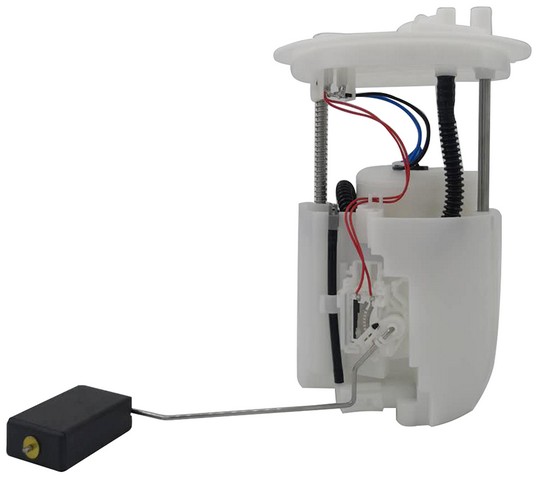

Agility 4010600 fuel pump module for the 2006-2009 Ford Fusion V6 3.0L and other vehicles sends fuel from the tank to the engine.
- Tested for pressure characteristics, flow rates and electrostatic discharge, plus 100% leak testing
- Built in a highly automated, dust-free environment
- Maximum flow rating of 60 U.S. gallons per hour and maximum pressure of 66 psi
- Strainer inlet and a quick-connect outlet
Quick facts
- Part: Agility 4010600 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006-2009 Ford Fusion V6 3.0L and other vehicles
- Condition: New
A worn pump module can show up as long cranking, sputtering when you accelerate or a no-start. These signs alone do not prove the module is at fault; a clogged fuel filter, for one, can make an engine sputter too.
Fits
Ford, Lincoln, Mazda and Mercury models are listed, including the 2009-2010 Mazda 6 V6 3.7L, the 2009-2013 6 4-cylinder 2.5L and the 2007-2012 Lincoln MKZ V6 3.5L, with one module per vehicle. If your car is not named here, look up your year and engine in the "Vehicles it fits" section. The module meets or exceeds all OEM specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: strainer
- Outlet type: quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 60 U.S. gallons per hour
- Maximum pressure: 66 psi
- Condition: New
- Country of origin: China
In the box
One fuel pump module, supplied as a kit.
Installation notes
- Comes ready to install right out of the box with the necessary components included.
Interchange: 323-00116 · 323-00164
E2458M · MO446 · P76307M · P76451M · P76452M · P76871M · FG1143 · 6E5Z9A407G · 6E5Z9H307G · 7E5Z9H307T · AE5Z9H307B · AE5Z9H307G · CA011335XC · L5181335XB · SP2380M · SP4105M · USEP2472M
This part cross-references / interchanges with the following part numbers:
E2458M, MO446, P76307M, P76451M, P76452M, P76871M, FG1143, 6E5Z9A407G, 6E5Z9H307G, 7E5Z9H307T, AE5Z9H307B, AE5Z9H307G, CA011335XC, 323-00116, 323-00164, L5181335XB, SP2380M, SP4105M, USEP2472M
Frequently Asked Questions
Is the Agility 4010600 the right fuel pump module for a 2009-2010 Mazda 6 V6 3.7L?
Yes. Agility 4010600 is listed for the 2009-2010 Mazda 6 V6 3.7L and the 2009-2013 6 4-cylinder 2.5L, and each takes one module.
Does this fuel pump assembly have a strainer on the inlet?
Yes. This fuel pump module has a strainer inlet and a quick-connect outlet with a 0.375 in outside diameter.
What flow and pressure is the Agility 4010600 rated for?
Agility 4010600 is rated for a maximum flow of 60 U.S. gallons per hour and a maximum pressure of 66 psi, on a 12-volt DC supply.
What does a failing fuel pump module feel like when driving?
Hard starting, sputtering when you accelerate or a no-start can be signs. Fuel pressure testing needs the engine running, so leave that to a shop.
Does this fuel pump module come with the parts needed to install it?
Yes. It is supplied as a kit with the necessary components included, so it is ready to install out of the box.
