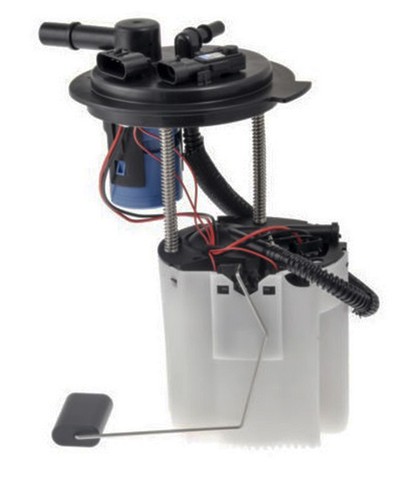

Agility 4010630 fuel pump module for the 2007-2008 GMC Acadia V6 3.6L and other vehicles moves fuel from the tank to the engine. It meets or exceeds all OEM specifications.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge, plus 100% leak testing
- Rated for a maximum flow of 65 U.S. gallons per hour and a maximum pressure of 63 psi
- Quick connect outlet and a strainer inlet
Quick facts
- Part: Agility 4010630 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2008 GMC Acadia V6 3.6L and other vehicles
- Condition: New
Hard starting, stalling or a whine from the tank can mean the module is worn. A bad fuse or loose wiring connector can cause similar signs, so with the engine off, look the fuse and connector over for damage or corrosion before you replace the module.
Fits
It fits the 2007-2008 GMC Acadia V6 3.6L, the 2008 Buick Enclave V6 3.6L and the 2007-2008 Saturn Outlook V6 3.6L, and each of them takes one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: Strainer
- Outlet type: Quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 65 U.S. gallons per hour
- Maximum pressure: 63 psi
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module, with the necessary components included.
Installation notes
- Supplied as a drop-in replacement right out of the box.
Interchange: E3748M · P76480M · FG1297 · 19167078 · 19208568 · 19259370 · SP6054M · USEP3748M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E3748M, P76480M, FG1297, 19167078, 19208568, 19259370, SP6054M, USEP3748M
Frequently Asked Questions
Is the Agility 4010630 fuel pump module right for a 2008 Buick Enclave V6 3.6L?
Yes. Agility 4010630 fits the 2008 Buick Enclave V6 3.6L, and the vehicle takes one module.
Does the Agility 4010630 fuel pump assembly fit the 2007-2008 Saturn Outlook V6 3.6L?
Yes. Agility 4010630 fits the 2007-2008 Saturn Outlook V6 3.6L, one per vehicle.
What outlet connection does this Agility fuel pump module have?
It has a quick connect outlet with a 0.375 in outside diameter, and the inlet type is a strainer.
What symptoms can a failing fuel pump module cause?
Hard starting, stalling or a whining noise from the tank can be signs of a worn module. Fuel pressure testing means working on the fuel system, so leave that to a shop.
Are Agility fuel pump modules leak tested?
Yes. Agility fuel module assemblies get 100% leak testing, along with checks of pressure characteristics, flowrates and electrostatic discharge.
