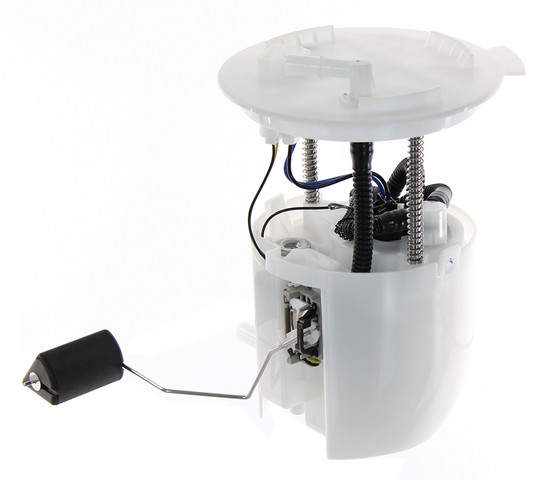

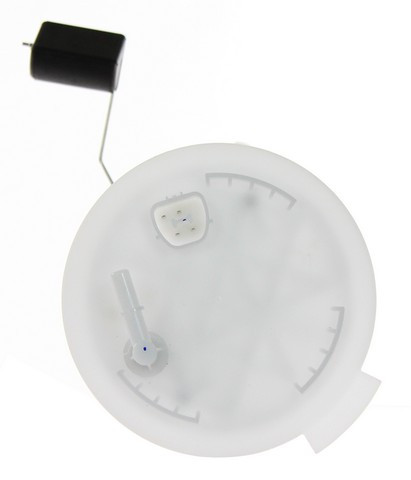

Agility 4010637 left fuel pump module for the 2007-2010 Ford Edge V6 3.5L and other vehicles delivers fuel from the tank to the engine.
- Engineered and manufactured in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge, with 100% leak testing
- Maximum flow rating of 58 U.S. gallons per hour and maximum pressure of 66 psi
- Strainer inlet and a quick-connect outlet with a 0.375 inch outside diameter
- Supplied as a kit with all the necessary components included
Quick facts
- Part: Agility 4010637 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2010 Ford Edge V6 3.5L and other vehicles
- Position: Left
- Condition: New
A worn fuel pump assembly can show up as an engine that cranks but will not start, sputtering at higher speeds or a whine from the tank area. Before you replace the module, rule out a blown fuel pump fuse or relay and damaged wiring, since those can produce similar symptoms.
Fits
This module is a drop-in replacement for the 2007-2010 Ford Edge V6 3.5L and the 2007-2010 Lincoln MKX V6 3.5L.
Specifications
Fit and size
- Position: Left
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 in
- Voltage: 12 V DC
Build and materials
- Inlet type: strainer
- Outlet type: quick connect
- Maximum flow rating: 58 U.S. gallons per hour
- Maximum pressure: 66 psi
- Supplied as a kit
- Condition: New
- Country of origin: China
In the box
One left fuel pump module, supplied as a kit with the necessary components included. This listing is one module for the left side, which needs one on both vehicles; the other side is ordered separately.
Interchange: 323-00190
E2470M · MO434 · P76482M · FG1168 · 7T4Z9H307A · 8T4Z9H307A · SP2373M · USEP2470M
This part cross-references / interchanges with the following part numbers:
E2470M, MO434, P76482M, FG1168, 7T4Z9H307A, 8T4Z9H307A, 323-00190, SP2373M, USEP2470M
Frequently Asked Questions
Is the Agility 4010637 left fuel pump module right for a 2007-2010 Lincoln MKX V6 3.5L?
Yes. Agility 4010637 fits the 2007-2010 Lincoln MKX V6 3.5L, and it also fits the 2007-2010 Ford Edge V6 3.5L.
Does the Agility 4010637 come as a kit with the parts needed to install it?
Yes. Agility 4010637 is one left fuel pump module supplied as a kit with the necessary components included. The left side takes one, and the other side is ordered separately.
What flow rate and pressure is this fuel pump module rated for?
This module has a maximum flow rating of 58 U.S. gallons per hour and a maximum pressure of 66 psi, on a 12 V DC supply.
What kind of outlet does this fuel pump module have?
This fuel pump module has a quick-connect outlet with a 0.375 inch outside diameter, and its inlet is a strainer.
How is the Agility 4010637 tested before it is sold?
The module is tested for pressure characteristics, flowrates and electrostatic discharge, and it also gets 100% leak testing.
