Fuel Pump Module for 2007-2010 Ford Edge & More - Agility 4010638

$140.99

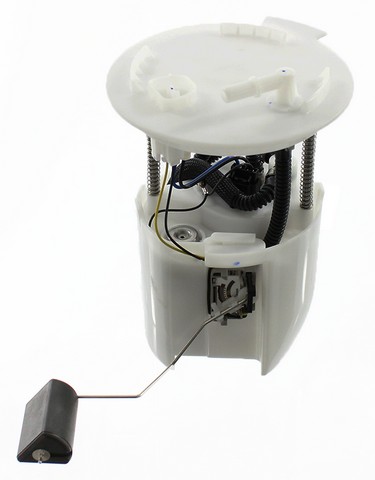

Agility Autoparts Fuel Pump Module Assembly 4010638
Agility Autoparts Fuel Pump Module Assembly 4010638 - view 2

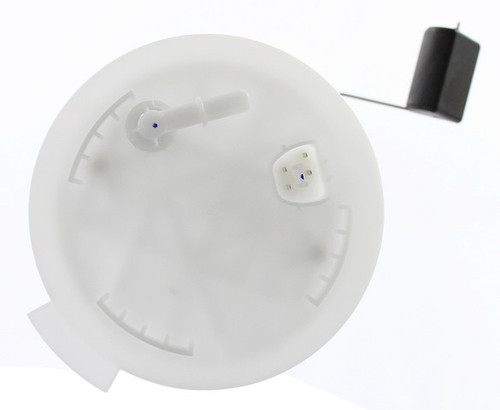

Agility Autoparts Fuel Pump Module Assembly 4010638 - view 3
Agility Autoparts Fuel Pump Module Assembly 4010638
Agility Autoparts Fuel Pump Module Assembly 4010638 - view 2
Agility Autoparts Fuel Pump Module Assembly 4010638 - view 3

Vehicles this part fits
    Part number: 4010638
    UPC: 887548188830
    Condition: New
    Weight: 4.88 LBS
    Item Package Quantity: 1
    $140.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Agility Autoparts Fuel Pump Module Assembly P/N:4010638
    Agility Autoparts Fuel Pump Module Assembly P/N:4010638
    $140.99
    $140.99

    Agility 4010638 fuel pump module for the 2007-2010 Ford Edge V6 3.5L and other vehicles moves fuel from the tank toward the engine. Also called a fuel pump assembly, it draws fuel through a strainer inlet and sends it out a quick-connect outlet.

    • Highly automated, dust-free production environment
    • Tested for pressure characteristics, flow rates and electrostatic discharge, with 100% leak testing
    • Ready to install out of the box with all the necessary components included
    • Maximum flow rating of 58 U.S. gallons per hour and maximum pressure of 66 PSI

    Quick facts

    • Part: Agility 4010638 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2007-2010 Ford Edge V6 3.5L and other vehicles
    • Condition: New

    Long cranking, hesitation under load or stalling can mean the pump in the module is weak, though a clogged fuel filter or a faulty fuel pump relay can be behind them too, so find the cause before replacing it.

    Fits

    It is a direct-fit replacement for the 2007-2010 Ford Edge V6 3.5L and the 2007-2010 Lincoln MKX V6 3.5L. Both cars take a single module.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet type: Strainer
    • Outlet type: Quick connect
    • Outlet outside diameter: 0.375 in

    Build and materials

    • Voltage: 12 V DC
    • Kit: included
    • Condition: New
    • Country of origin: Thailand

    In the box

    One fuel pump module kit with the components needed to install it.

    Interchange: PFS-384 · PFS-516 · 323-00190
    E2479M · P76458M · FG1206 · 7T4Z9H307B · 8T4Z9H307B · SP2374M · USEP2479M

    This part cross-references / interchanges with the following part numbers:

    E2479M, P76458M, FG1206, 7T4Z9H307B, 8T4Z9H307B, PFS384, PFS516, 323-00190, PFS-384, PFS-516, SP2374M, USEP2479M

    Frequently Asked Questions

    Is the Agility 4010638 fuel pump module the right one for a 2007-2010 Ford Edge V6 3.5L?

    Yes. Agility 4010638 is a direct-fit replacement for the 2007-2010 Ford Edge V6 3.5L, and that car takes one module.

    Will this fuel pump module work in a 2007-2010 Lincoln MKX V6 3.5L?

    Yes. It fits the 2007-2010 Lincoln MKX V6 3.5L, which takes one module.

    What comes with the Agility 4010638 fuel pump module kit?

    It is sold as a kit with all the necessary components included, so it is a drop-in unit right out of the box. The listing is one module.

    What flow rate and pressure does this fuel pump module have?

    Its maximum flow rating is 58 U.S. gallons per hour and its maximum pressure is 66 PSI, on 12 V DC. The outlet is a 0.375 inch quick-connect.

    How is the Agility 4010638 fuel pump module tested?

    Agility 4010638 is tested for pressure characteristics, flow rates and electrostatic discharge, and it gets 100% leak testing.
