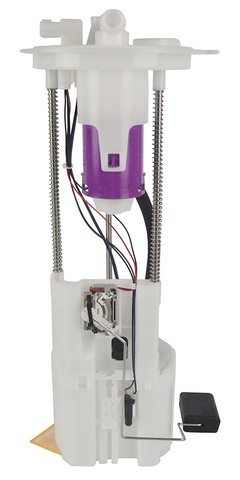

Agility 4010667 fuel pump module for the 2008-2009 Nissan Titan V8 5.6L carries fuel from the tank to the engine under pressure. Also called a fuel pump assembly, it replaces a pump that has worn and can no longer keep fuel pressure up.
- Highly automated, dust-free production environment
- Tested for pressure characteristics, flow rates and electrostatic discharge, with 100% leak testing
- Kit with the necessary components included, ready to install out of the box
- Maximum flow rating of 59 U.S. gallons per hour and maximum pressure of 52 psi
Quick facts
- Part: Agility 4010667 fuel pump module
- Also called: fuel pump assembly
- Fits: 2008-2009 Nissan Titan V8 5.6L
- Condition: New
A failing pump can show up as hard starting, sputtering or power loss under load, or a whine from the fuel tank area. A blown fuel pump fuse can look the same, so with the ignition off, look at that fuse before replacing the module. Fuel-pressure and wiring tests are a job for a shop.
Fits
This is a direct-fit replacement for the 2008-2009 Nissan Titan V8 5.6L and meets or exceeds all OEM specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet type: Quick Connect
- Outlet outside diameter: 0.375 in
Build and materials
- Inlet type: Strainer
- Voltage: 12 V DC
- Condition: New
- Country of origin: China
In the box
One fuel pump module, supplied as a kit. This listing holds one module, and the 2008-2009 Nissan Titan V8 5.6L takes one.
Interchange: E8861M · FG2197 · 17040ZQ60E · 17040ZR00A · SP4169M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E8861M, FG2197, 17040ZQ60E, 17040ZR00A, SP4169M
Frequently Asked Questions
Does the Agility 4010667 fuel pump module fit the 2008-2009 Nissan Titan V8 5.6L?
Yes. Agility 4010667 is listed for the 2008-2009 Nissan Titan V8 5.6L, and the truck takes one module.
Does the Agility 4010667 come with the parts needed to install it?
Yes. Agility 4010667 is sold as a kit with the necessary components included, ready to install out of the box. This listing is one module.
What flow and pressure is this fuel pump module rated for?
The maximum flow rating is 59 U.S. gallons per hour and the maximum pressure is 52 psi, on a 12-volt DC supply.
How can I tell if my fuel pump module is going bad?
Hard starting, sputtering or power loss under load, or a whine from the tank area can be signs of a weak pump, though a blown fuse can look the same. A shop can test fuel pressure and wiring.
How is this Agility fuel pump module tested?
It is tested for pressure characteristics, flow rates and electrostatic discharge, and every unit gets 100% leak testing. It is made in a highly automated, dust-free environment.
