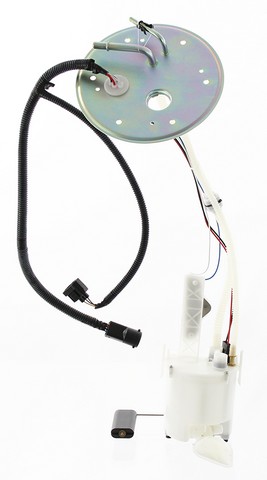

Agility Autoparts Fuel Pump Module Assembly P/N:4010678

Be the first to review this product

$88.99

MPN: 4010678

UPC: 887548189233

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Agility Autoparts Fuel Pump Module Assembly P/N:4010678

$88.99

Description

Keep fuel moving from tank to rail with the Agility Auto Parts Fuel Pump Module Assembly (MPN 4010678), a drop-in replacement for the rear fuel-tank position on 2008-2010 Ford F-350 Super Duty (V10-6.8L, V8-5.4L), 2008 and 2010 Ford F-450 Super Duty (V10-6.8L), and 2008-2010 Ford F-550 Super Duty (V10-6.8L). This complete module ships ready to install with the necessary components included.

Integrated module design: combines the electric fuel pump with a strainer inlet and a quick-connect outlet measuring 0.375 in outside diameter.
Rated performance: operates on 12 volts DC with a maximum flow rating of 75 U.S. gallons per hour and a maximum pressure rating of 105 psi.
Tested and validated: Agility subjects its fuel module assemblies to performance and reliability testing covering pressure characteristics, flow rates, electrostatic discharge, and 100% leak testing.
Built to specification: engineered and manufactured in a dust-free environment to meet or exceed OEM requirements.

Signs the original module may need replacing include hard starting, extended cranking, loss of fuel pressure, engine stalling, or no-start conditions. Diagnose the cause before replacing. Country of origin: Thailand.

Interchange: E2510M · P77154M · FG1209 · 7C3Z9H307C · 8C3Z9H307D · SP2302M · USEP2510M

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

E2510M, P77154M, FG1209, 7C3Z9H307C, 8C3Z9H307D, SP2302M, USEP2510M

Frequently Asked Questions

What vehicles does this fuel pump module fit?

It fits the 2008-2010 Ford F-350 Super Duty (V10-6.8L, V8-5.4L), 2008 and 2010 Ford F-450 Super Duty (V10-6.8L), and 2008-2010 Ford F-550 Super Duty (V10-6.8L). Check the Buyer's Guide tab to confirm your vehicle.

What are the flow and pressure ratings?

This module has a maximum flow rating of 75 U.S. gallons per hour and a maximum pressure rating of 105 psi, and it operates on 12 volts DC.

Does it include the components needed for installation?

Yes. It ships as a complete module assembly with the necessary components included, and it features a strainer inlet and a quick-connect outlet.

Where does this module mount?

The catalog lists this as a rear-position fuel pump module assembly. Refer to your vehicle's service information for the exact tank location and removal procedure.

What signs suggest the fuel pump module needs replacing?

Hard starting, extended cranking, loss of fuel pressure, stalling, or a no-start condition can point to a failing module. Diagnose the cause before replacing, since these symptoms can have other sources.
