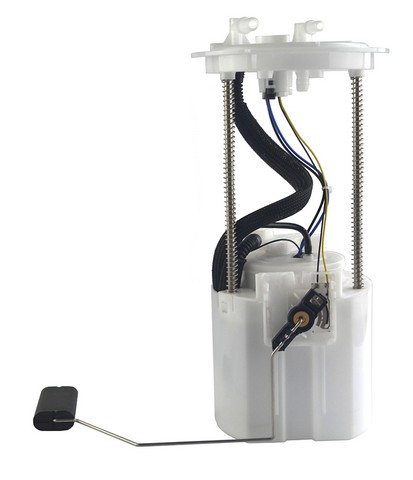

Agility 4010704 fuel pump module for the 2009 Ford Escape 4-cylinder 2.5L or V6 3.0L and other vehicles moves fuel from the tank to the engine. This fuel pump module, also called a fuel pump assembly, is sold individually.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flow rates and electrostatic discharge, plus 100% leak testing
- Maximum flow rating of 70 U.S. gallons per hour at 12 volts DC
- Strainer inlet and quick-connect outlet with a 0.375 inch outside diameter
Quick facts
- Part: Agility 4010704 fuel pump module
- Also called: fuel pump assembly
- Fits: 2009 Ford Escape 4-cylinder 2.5L or V6 3.0L and other vehicles
- Condition: New
Hard starting, engine stalling or a whine from the fuel tank area can mean the pump is worn, though a clogged fuel filter or a failed fuel pump relay can be behind any of them, so rule those out first. These cars need just one module, and this listing is one.
Fits
It is a drop-in replacement for the 2009 Ford Escape 4-cylinder 2.5L or V6 3.0L, the 2009-2010 Mercury Mariner 4-cylinder 2.5L or V6 3.0L and the 2009 Mazda Tribute 4-cylinder 2.5L or V6 3.0L. Its specifications match or go beyond OEM requirements.
Specifications
Fit and size
- Quantity per vehicle: 1
- Maximum flow rating: 70 U.S. gallons per hour
- Voltage: 12 volts DC
- Outlet outside diameter: 0.375 inch
- Outlet type: Quick connect
- Inlet type: Strainer
Build and materials
- Supplied as a kit
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module supplied as a kit with all the necessary components included.
Interchange: 323-00570
E2529M · MO589 · P76434M · 9L8Z9H307A · 9L8Z9H307C · ZZD01335XB · SP2093M · USEP2529M
This part cross-references / interchanges with the following part numbers:
E2529M, MO589, P76434M, 9L8Z9H307A, 9L8Z9H307C, ZZD01335XB, 323-00570, SP2093M, USEP2529M
Frequently Asked Questions
Is this Agility 4010704 fuel pump module right for the 2009 Ford Escape 4-cylinder 2.5L or V6 3.0L?
Yes. Agility 4010704 fits the 2009 Ford Escape with either the 4-cylinder 2.5L or the V6 3.0L engine.
Does the Agility 4010704 come as a kit with everything needed?
Yes. This Agility 4010704 fuel pump module is supplied as a kit with all the necessary components included.
What flow rating and outlet does the Agility 4010704 fuel pump module have?
Its maximum flow rating is 70 U.S. gallons per hour at 12 volts DC. The inlet is a strainer, and the outlet is a 0.375 inch quick connect.
Could a whine from the tank area mean the fuel pump module is wearing out?
It can, and hard starting or stalling are other signs. A shop can test fuel pressure and flow, since that takes a running engine and fuel line work.
Does this module interchange with 9L8Z9H307A?
Yes. 9L8Z9H307A is one of the numbers Agility 4010704 replaces, along with 9L8Z9H307C and MO589.
