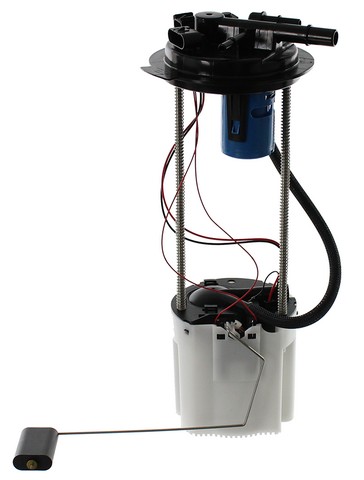

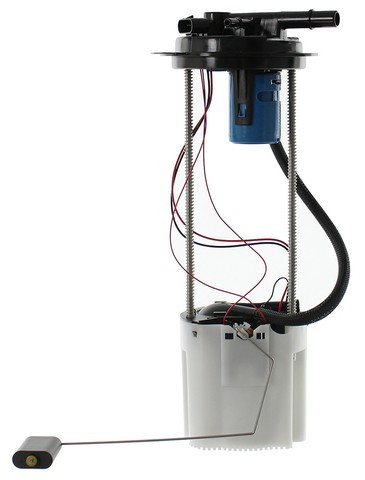

Agility 4011085 fuel pump module for the 2009 Chevrolet Silverado 1500 V8 4.8L or 5.3L and other vehicles supplies fuel from the tank to the engine. It comes ready to install out of the box and is built to OEM specifications.
- Highly automated, dust-free production environment
- Tested for pressure characteristics, flowrates and electrostatic discharge, with 100% leak testing
- Rated for a maximum flow of 70 U.S. gallons per hour and a maximum pressure of 90 psi
- Strainer inlet and a quick-connect outlet with a 0.375 in outside diameter
Quick facts
- Part: Agility 4011085 fuel pump module
- Also called: fuel pump assembly
- Fits: 2009 Chevrolet Silverado 1500 V8 4.8L or 5.3L and other vehicles
- Condition: New
Hard starting, stalling under load or a whine from the tank can mean the fuel pump module is wearing out. If the module is the cause, this unit replaces it. A clogged fuel filter, a failed relay or a wiring fault can be behind these signs as well, so find out which it is before you buy.
Fits
It fits the 2009 Chevrolet Silverado 1500 V8 4.8L or 5.3L and the 2009 GMC Sierra 1500 V8 4.8L or 5.3L, and either truck takes one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 in
- Outlet type: quick connect
- Inlet type: strainer
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 70 U.S. gallons per hour
- Maximum pressure: 90 psi
- Condition: new
- Country of origin: Thailand
In the box
One fuel pump module with the necessary components included.
Interchange: E3815M · 69449 · P77023M · FG0935 · 19206580 · SP6761M · USEP3815M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E3815M, 69449, P77023M, FG0935, 19206580, SP6761M, USEP3815M
Frequently Asked Questions
Is the Agility 4011085 right for a 2009 Chevrolet Silverado 1500 V8 4.8L or 5.3L?
Yes. Agility 4011085 fits the 2009 Chevrolet Silverado 1500 V8 4.8L or 5.3L, and the 2009 GMC Sierra 1500 V8 4.8L or 5.3L takes it as well. Each truck takes one.
What comes with the Agility 4011085 fuel pump module?
The Agility 4011085 comes as one fuel pump module with the necessary components included for installation.
What kind of outlet connection does this fuel pump assembly have?
The outlet is a quick-connect type with a 0.375 in outside diameter, and the inlet is a strainer. The pump runs on 12 V DC.
How is the Agility 4011085 fuel pump module tested?
Agility 4011085 is tested for pressure characteristics, flowrates and electrostatic discharge, and every unit gets 100% leak testing.
What flow rate and pressure is this fuel pump module rated for?
The maximum flow rating is 70 U.S. gallons per hour, and the maximum pressure is 90 psi.
