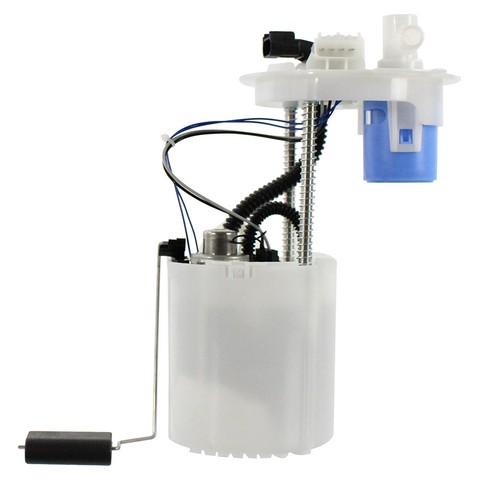

Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump Module Assembly, part number 4011328. This 12-volt module draws fuel through a strainer inlet and sends it forward through a quick-connect outlet. It fits many vehicles, among them the 2014-2015 Chevrolet Malibu 2.0L / 2.5L, 2010-2011 Buick LaCrosse 3.0L / 3.6L and 2014-2017 Buick Regal 2.0L / 2.4L, as a direct-fit replacement for the listed applications. Listed applications include L4-2.0L, L4-2.4L, L4-2.5L, V6-3.0L and V6-3.6L engines, depending on model and year. See the "Vehicles it fits" section for the full list.
- Drop-in design: Agility builds its fuel module assemblies as drop-in replacements right out of the box, and states they meet or exceed all original-equipment specifications.
- Clean production: Each module is engineered and manufactured in a highly automated, dust-free environment.
- Tested: Agility's performance and reliability testing checks pressure characteristics, flow rates and electrostatic discharge, and every module is leak tested.
Specifications: 12 volts DC; maximum flow rating of 60 U.S. gallons per hour; maximum pressure of 90 psi; strainer inlet; quick-connect outlet with a 0.375 in outside diameter. The listed applications use one module. Country of origin: Thailand.
If a failed pump module is causing hard starting, sputtering or a loss of power, this assembly replaces it. Confirm the cause with a fuel pressure test before you replace it.
Interchange: E4012M · P76855M · FG1288 · 13578372 · SP6644M · USEP4012M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E4012M, P76855M, FG1288, 13578372, SP6644M, USEP4012M
Frequently Asked Questions
What does a fuel pump assembly do?
It draws fuel from the tank through its strainer inlet and pumps it under pressure toward the engine's fuel system. This Agility module runs on 12 volts DC.
Is this the right fuel pump module for a 2014-2015 Chevy Malibu 2.0L or 2.5L?
It is listed for the 2014-2015 Chevrolet Malibu with the L4-2.0L or L4-2.5L engine. Check the "Vehicles it fits" section to confirm your exact vehicle.
What are the specs of Agility 4011328?
It is rated at 12 volts DC, with a maximum flow of 60 U.S. gallons per hour and a maximum pressure of 90 psi. It has a strainer inlet and a 0.375 in quick-connect outlet.
What are signs a fuel pump module may need replacing?
Common signs include hard starting, sputtering or hesitation under load, stalling, a whining noise from the tank and low fuel pressure. Other faults can cause these too, so test fuel pressure first.
How does Agility test this module?
Agility tests its fuel module assemblies for pressure characteristics, flow rates and electrostatic discharge, and every unit is leak tested.
