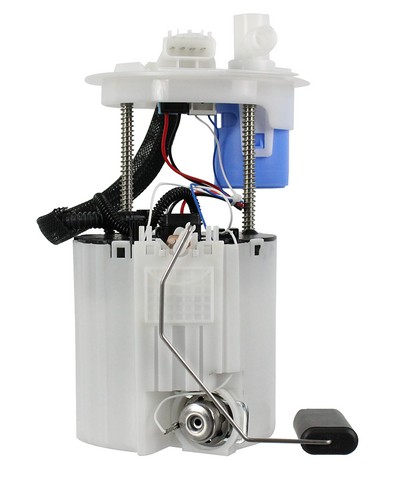

Agility 4011355 fuel pump module for the 2012-2017 Chevrolet Sonic 4-cylinder 1.6L and the 2012-2018 Sonic 4-cylinder 1.4L or 1.8L moves fuel from the tank to the engine.
- Engineered and manufactured in a highly automated, dust-free environment
- Tested for pressure characteristics, flow rates and electrostatic discharge, plus 100% leak testing
- Drop-in assembly with all the necessary components included
Quick facts
- Part: Agility 4011355 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2012-2017 Chevrolet Sonic 4-cylinder 1.6L and the 2012-2018 Sonic 4-cylinder 1.4L or 1.8L
- Condition: New
Hard starting, stalling or a whine from the tank can mean the pump inside is wearing out. Before you replace the module, rule out a blown fuse, a faulty relay and damaged wiring, since any of them can leave the engine without fuel. A shop can test the fuel system for you.
Fits
It fits the 2012-2017 Chevrolet Sonic with the L4-1.6L engine and the 2012-2018 Sonic with the L4-1.4L or L4-1.8L engine. The module is built to meet OEM specifications or better.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 in
- Outlet type: Quick connect
Build and materials
- Inlet type: Strainer
- Voltage: 12 V DC
- Maximum flow rating: 75 U.S. gallons per hour
- Maximum pressure: 90 psi
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module assembly with the components needed to install it. This listing holds one module, and the vehicle takes one.
Interchange: E4056M · MO531 · P76867M · FG2055 · 13592112 · SP6704M · USEP4056M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E4056M, MO531, P76867M, FG2055, 13592112, SP6704M, USEP4056M
Frequently Asked Questions
Does the Agility 4011355 fit the 2012-2017 Chevrolet Sonic 4-cylinder 1.6L?
Yes. Agility 4011355 fits the 2012-2017 Chevrolet Sonic 4-cylinder 1.6L and the 2012-2018 Sonic 4-cylinder 1.4L or 1.8L.
Does this Agility fuel pump assembly come with the parts needed to install it?
Yes. Agility supplies the module with all the necessary components included; this listing is one module, and the vehicle needs one.
What flow and pressure is the Agility 4011355 fuel pump module rated for?
Agility 4011355 is rated for a maximum flow of 75 U.S. gallons per hour and a maximum pressure of 90 psi, on 12 volts DC.
Does this fuel pump module have a quick-connect outlet?
Yes. The outlet is a quick-connect type with a 0.375 in outside diameter, and the inlet uses a strainer.
How is this fuel pump module tested before it is sold?
The module is tested for pressure characteristics, flow rates and electrostatic discharge, and every unit gets a 100% leak test.
