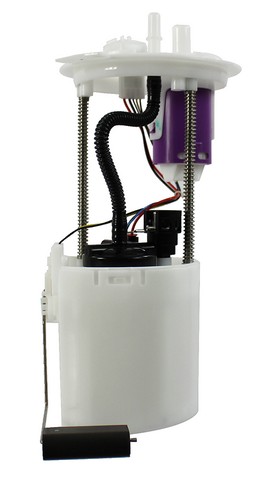

Agility 4011407 fuel pump module for the 2014 Ford F-150 V6 3.5L pumps fuel from the tank to the engine. It is a full module assembly that meets or exceeds all OEM specifications.
- Highly automated, dust-free manufacturing environment
- Tested for pressure characteristics, flowrates and electrostatic discharge
- Every unit gets 100% leak testing
- Maximum flow rating of 45 U.S. gallons per hour and maximum pressure of 75 psi
Quick facts
- Part: Agility 4011407 fuel pump module
- Also called: fuel pump assembly
- Fits: 2014 Ford F-150 V6 3.5L
- Condition: New
Hard starting, sputtering under load, stalling or a whine from the fuel tank can mean the pump is weakening. A clogged fuel filter, a failed relay, a blown fuse or damaged wiring can also be behind those symptoms, so track down the cause before you buy a module.
Fits
This fuel pump module is a direct-fit replacement for the 2014 Ford F-150 V6 3.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: strainer
- Outlet type: quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Type: fuel pump module assembly
- Voltage: 12 V DC
- Condition: New
- Country of origin: China
In the box
One fuel pump module. This listing holds one module, and the 2014 Ford F-150 V6 3.5L takes one.
Installation notes
- Ready to install right out of the box, with all the necessary components included.
Interchange: FG1482 · EL3Z9H307A · SP2553M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
FG1482, EL3Z9H307A, SP2553M
Frequently Asked Questions
Does the Agility 4011407 fit a 2014 Ford F-150 with the V6 3.5L?
Yes. Agility 4011407 fits the 2014 Ford F-150 V6 3.5L, and that truck takes one module.
What kind of outlet does the Agility 4011407 have?
The Agility 4011407 has a quick-connect outlet with a 0.375 in outside diameter. Its inlet is a strainer.
What flow and pressure is this fuel pump assembly rated for?
This module is rated for a maximum flow of 45 U.S. gallons per hour and a maximum pressure of 75 psi. It runs on 12 V DC.
How is this fuel pump module tested?
It is tested for pressure characteristics, flowrates and electrostatic discharge, and every unit also gets 100% leak testing.
Is the Agility 4011407 a replacement for part number EL3Z9H307A?
Yes. EL3Z9H307A is one of the numbers Agility 4011407 replaces, along with FG1482 and SP2553M.
