Heater Core for 2006-2011 Buick Lucerne & More - Agility 9010522

$34.99

Agility Autoparts HVAC Heater Core 9010522

Part number: 9010522

UPC: 887548054128

Condition: New

Weight: 8.50 LBS

Item Package Quantity: 1

$34.99

Current Stock: 15

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

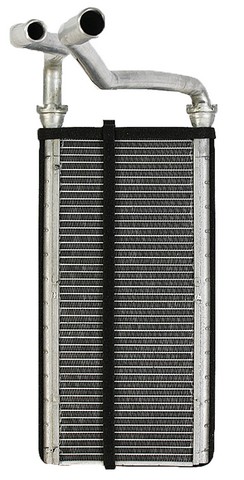

Agility Autoparts HVAC Heater Core P/N:9010522

$34.99

Description

Send engine heat into the cabin with the Agility Auto Parts Heater Core 9010522, a direct-fit replacement for the 2006-2011 Buick Lucerne and 2006-2011 Cadillac DTS (all engines). Hot engine coolant passes through the core, and the blower pushes air across its fins to warm the air delivered to the cabin.

Weak heat or a sweet coolant smell inside the car are among the signs that an hvac heater core may need replacing, but other parts can cause them too. Diagnose the system first. If the core is at fault, this unit replaces it.

Aluminum construction: both the core and the tanks are aluminum.
Fin and tube design: Agility uses its latest fin and tube technology, which is aimed at increased thermal performance and resistance to corrosion.
Checked for a drop-in fit: Agility fitment checks its heaters in the actual vehicle's HVAC heater module, so they are ready to install right out of the box.
Quality and testing: certified to OE specifications or better, produced under ISO TS16949 quality systems, and 100% leak tested.

Specifications: the core is 11.000 in wide, 4.3125 in high and 1.000 in deep. The inlet pipe diameter is 0.5625 in and the outlet pipe diameter is 0.750 in. The listed applications use one heater core. Country of origin: China.

Interchange: 18-11773
8069 · 25770667 · 99142 · 92016 · 99361 · 1811773

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

8069, 25770667, 99142, 92016, 18-11773, 99361

Buyer's Q&A

Frequently Asked Questions

Does this 2007 Buick Lucerne heater core also fit the Cadillac DTS?

Yes. It is listed as a direct-fit replacement for the 2006-2011 Buick Lucerne and the 2006-2011 Cadillac DTS with all engines, and each vehicle uses one heater core.

What does a heater core do?

Hot engine coolant flows through the core, and the blower moves air across its fins. That heated air is then delivered to the cabin and defroster vents.

What are the core and pipe dimensions?

The core measures 11.000 in wide, 4.3125 in high and 1.000 in deep. It has a 0.5625 in inlet pipe and a 0.750 in outlet pipe.

What signs suggest a heater core may need replacing?

Common signs are weak or no cabin heat, a sweet coolant smell inside, a film fogging the windshield, damp carpet, or unexplained coolant loss. Confirm the cause before you replace the core.

Is this heater core leak tested?

Yes. Agility heaters are 100% leak tested and built under ISO TS16949 quality systems. They are also fitment checked in the actual vehicle's HVAC heater module.
