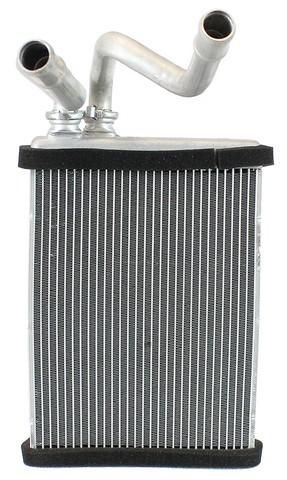

Put engine heat to work warming the cabin with the Agility Auto Parts Heater Core 9010685, an aluminum core whose tubes and fins pass the heat of hot engine coolant to the air the blower sends through the vents. It fits many vehicles, among them the 2013-2016 Audi RS5, 2008-2017 Audi A5 Quattro and 2009-2017 Audi Q5. It is a direct-fit replacement for the listed applications; see the Buyer's Guide tab for the full list.
- Aluminum build: Both the core and the tank are aluminum.
- Fin and tube technology: Agility uses its latest fin and tube design for increased thermal performance and resistance to corrosion.
- Drop-in fit: Each heater is fitment-checked in the actual vehicle's HVAC heater module, so it is ready to install right out of the box.
- Quality checked: Built under ISO TS16949 quality systems, certified to equal or surpass OE specifications, and 100% leak tested.
Specifications: Core height 8.750 in, core width 7.125 in, core depth 1.250 in. Inlet and outlet pipe diameter 0.6875 in each. The listed applications use one heater core. Country of origin: China.
If this hvac heater core is the source of weak cabin heat, a sweet coolant smell, fogged glass or a damp floor, this unit replaces it. Diagnose the cause first, and follow the vehicle service information for removal, installation and refilling the cooling system.
Interchange: 18-12504
1812504 · 92270 · 98134 · 8K0898037A
This part cross-references / interchanges with the following part numbers:
92270, 18-12504, 98134, 8K0898037A
