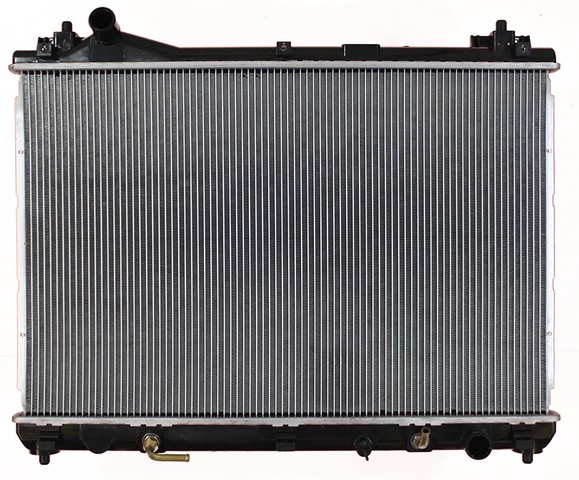

Agility Autoparts Radiator P/N:8013136

Keep coolant moving and engine temperatures in check with the Agility Auto Parts Radiator 8013136. It drops in as a direct-fit replacement for the 2009-2017 Suzuki Grand Vitara (L4-2.4L), transferring heat from the circulating coolant to the passing air so the engine can hold its normal operating temperature. If your original radiator is leaking, clogged, or damaged, this is the part that replaces it.

• Construction: plastic tanks paired with an aluminum core, built with a single-row core.
• Core dimensions: 27.500 in wide, 17.750 in tall, and 0.625 in thick, with 1.375 in inlet and outlet diameters.
• Integrated transmission oil cooler: includes a built-in cooler (13.750 in length) for the transmission fluid.
• Tested & certified: engineered and manufactured under the ISO TS16949 quality system, 100% leak tested, and made to meet or exceed the specifications so it's ready to install out of the box.

Country of origin: China.

Interchange: 221-9245 · 41-13136
2219245 · 4113136 · 2873 · CUC13136 · 13136 · A13136 · CU13136 · 1770065J10
