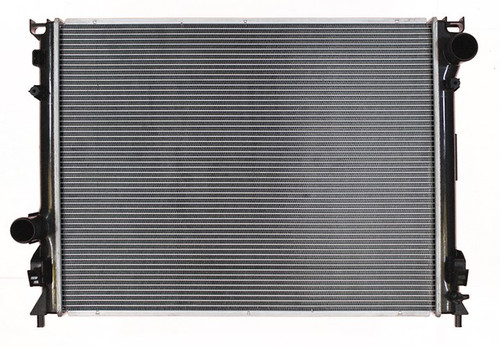

Agility 8013158 radiator for the 2009-2010 Dodge Charger V6 2.7L, 3.5L or V8 6.1L, the 2009-2019 Charger V8 5.7L, the 2011-2019 Charger V6 3.6L, the 2012-2013 Charger V8 6.4L and other vehicles moves heat out of the engine coolant and into the air. Coolant flows through the core, and air passing over it carries the heat away.
- Plastic tank aluminum construction
- Two-row core
- Each radiator is 100% leak tested
- Ready to install out of the box
Quick facts
- Part: Agility 8013158 radiator
- Fits: the 2009-2010 Dodge Charger V6 2.7L, 3.5L or V8 6.1L, the 2009-2019 Charger V8 5.7L, the 2011-2019 Charger V6 3.6L, the 2012-2013 Charger V8 6.4L and other vehicles
- Condition: New
A leaking or clogged radiator can show up as coolant loss, an engine that runs hot or a temperature gauge that climbs. Other cooling system parts can give similar signals, so before replacing it, look over the tanks and core with the engine off and cool for wet spots, crusty residue or bent fins.
Fits
It is also a radiator for the 2009-2010 Chrysler 300 V6 2.7L, 3.5L or V8 6.1L, the 2009-2020 300 V8 5.7L and the 2011-2020 300 V6 3.6L, and for the 2009-2010 Dodge Challenger V6 3.5L or V8 6.1L, the 2009-2020 Challenger V8 5.7L, the 2011-2015 Challenger V8 6.4L and the 2011-2020 Challenger V6 3.6L.
Specifications
Fit and size
- Core height: 18.375 in
- Core width: 24.125 in
- Core thickness: 1.5625 in
- Inlet diameter: 1.750 in
- Outlet diameter: 1.625 in
- Quantity per vehicle: 1
Build and materials
- Construction: plastic tank aluminum
- Condition: new
- Country of origin: China
In the box
One radiator. A car needs a single radiator, so this one listing covers it.
Interchange: 41-13158
2924 · CUC13158 · 13158 · 68050131AA · 68050291AA · A13158 · CR13158 · CU13158
This part cross-references / interchanges with the following part numbers:
2924, CUC13158, 13158, 68050131AA, 68050291AA, A13158, CR13158, 41-13158, CU13158
Frequently Asked Questions
Is this a 2012 Dodge Charger radiator?
Yes. Agility 8013158 fits the 2011-2019 Dodge Charger V6 3.6L, the 2009-2019 Charger V8 5.7L and the 2012-2013 Charger V8 6.4L.
What size are the inlet and outlet on the Agility 8013158 radiator?
The inlet is 1.750 in in diameter and the outlet is 1.625 in in diameter.
Is this radiator sold one at a time?
Yes. This Agility 8013158 listing is one radiator, and the application takes a single radiator.
How big is the core on this radiator?
The core is 24.125 in wide, 18.375 in high and 1.5625 in thick, with two rows.
Is each Agility radiator leak tested?
Yes. Every Agility radiator is 100% leak tested and arrives ready to install out of the box.
