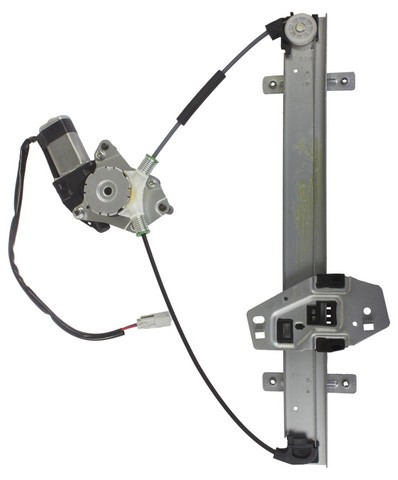

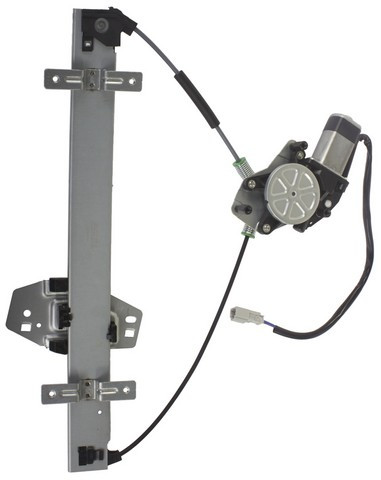

Rear Left Window Regulator with Motor for 2001-2006 Acura MDX - AISIN RPAH-118
AISIN RPAH-118 rear left window regulator with motor for the 2001-2006 Acura MDX raises and lowers the door glass. This window regulator and motor assembly is built to OE standards, with re-engineered processes behind its improvements over the factory design.
- Motor and regulator supplied together as one unit
- 12-volt DC motor with a wiring harness and plug-in connection
- Steel and plastic construction on a steel frame
- Simulated environmental testing for fit, form and function
- Strict quality control applied during manufacturing
Quick facts
- Part: AISIN RPAH-118 window regulator with motor
- Also called: window regulator and motor assembly
- Fits: 2001-2006 Acura MDX
- Position: Rear left
- Material: Steel and plastic
- Condition: New
A window that moves slowly, stops partway or grinds can mean this regulator or motor is worn, though the window switch or a fuse can be behind the same signs.
Fits
This listing covers the 2001-2006 Acura MDX window motor and regulator for the rear left door. It is one unit for that side; the rear right is ordered separately, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: rear left
- Quantity per application: 1
- Voltage: 12 V DC
- Terminals: 2, male
- Wires: 2

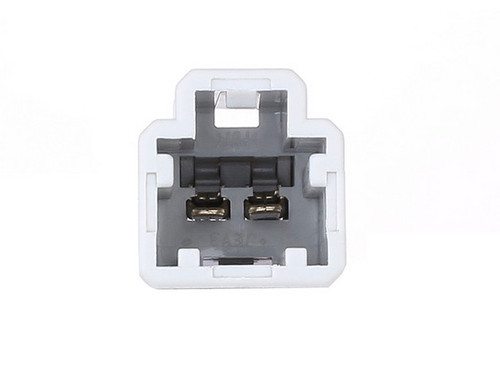

- Connection: plug-in
Build and materials
- Material: steel and plastic
- Frame material: steel
- Motor and regulator: both included
- Anti-pinch motor: no
- Condition: new
- Country of origin: Viet Nam
In the box
One window regulator with motor and a wiring harness. Mounting hardware is not included, so plan on new fasteners, since the old ones may not be reusable.
Installation notes
- Bolt-on mounting.
- Installation instructions come with the part.
Interchange: 748-558 · 21-1589
11A715 · 88556 · 72750S3VA03 · AC1550102 · 660556 · WPR4912LMB
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Does the AISIN RPAH-118 fit the rear left door of a 2001-2006 Acura MDX?
Yes. AISIN RPAH-118 is the rear left window regulator with motor for the 2001-2006 Acura MDX. The rear right door takes a separate part.
Does this window regulator come with the motor and wiring harness?
Yes. It is supplied as a regulator and motor assembly with a wiring harness. Mounting hardware is not included.
Is the AISIN RPAH-118 motor an anti-pinch type?
No. The motor is not anti-pinch, and it runs on 12 volts DC.
What signs can a failing rear power window regulator show?
The window may move slowly, stop partway or make a grinding noise. Any of these can point to a worn regulator or motor.
How does the AISIN RPAH-118 window regulator install?
The AISIN RPAH-118 mounts with bolts and connects through a plug-in connector. Installation instructions come with the part.
