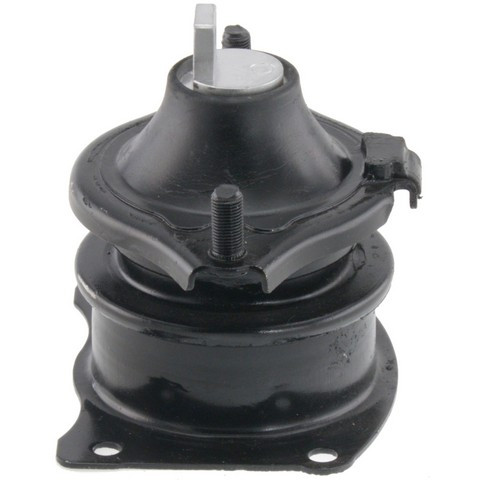

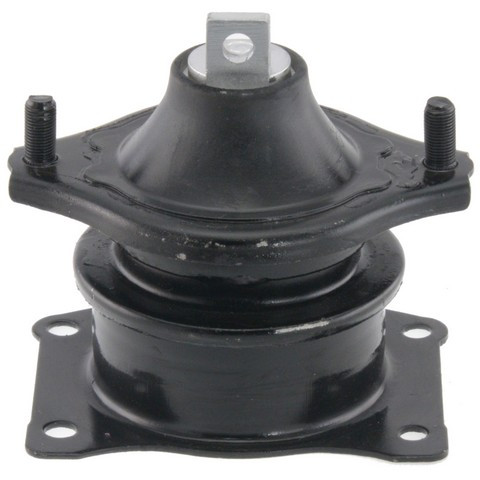

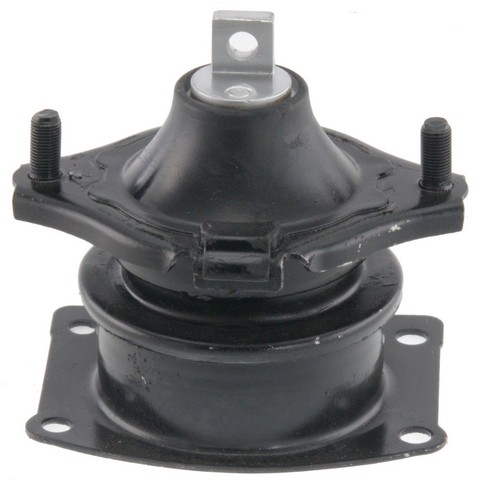

Anchor 10170 rear engine mount for the 2009-2014 Acura TL V6 3.5L or 3.7L supports the engine and dampens vibration. This motor mount from Anchor helps locate the powertrain and isolate its vibration.
- Engineered with a CAD/CAM process for consistent results from mount to mount
- Natural and Styrene Butadiene rubber that resists abrasion and stays stable as it ages
- Chemlock® bonding agent for the rubber-to-metal bond
- Rubber made to specific Durometer (hardness) measurements for each vehicle application
- Hydraulic type filled with special hydraulic fluid to dampen excess noise and vibration
Quick facts
- Part: Anchor 10170 engine mount
- Fits: 2009-2014 Acura TL V6 3.5L or 3.7L
- Position: Rear
- Material: Steel, rubber
- Condition: New
Clunking on acceleration, deceleration or shifting, vibration at idle, or cracked rubber can mean this rear mount has worn, though a worn transmission mount or a loose exhaust hanger can be behind similar signs, so find the cause first.
Fits
It is engineered to OE standards and fits the 2009-2014 Acura TL V6 3.5L or 3.7L.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 1
- Mounting holes: 5, 11.5 mm (0.45 in) diameter
- Stud thread size: M12-1.25, metric
- Studs: 2
Build and materials
- Type: Hydraulic
- Construction: Stamped
- Mount material: Steel
- Bracket material: Steel
- Bushing material: Rubber
- Finish: Painted, black, semi-gloss
- Condition: New
- Warranty: 12 months from Anchor
- Country of origin: China
In the box
One rear engine mount; the rear position takes one. Mounting hardware, a mounting bracket and a heat shield are not included, so plan on new bolts, since old ones may not be reusable.
Interchange: 50810TK4A02 · A65024 · C65024
This part cross-references / interchanges with the following part numbers:
50810TK4A02, A65024, C65024
Frequently Asked Questions
Is this the right engine mount for the 2009-2014 Acura TL V6 3.5L or 3.7L?
Yes. Anchor 10170 is a rear mount that fits the 2009-2014 Acura TL V6 3.5L and the V6 3.7L, and the rear position takes one.
Do these mounts come with bolts or a bracket?
No. This listing is one rear engine mount; mounting hardware, a mounting bracket and a heat shield are not included.
Are Anchor engine mounts like the 10170 fluid-filled?
Yes. Anchor 10170 is a hydraulic type, filled with special hydraulic fluid to dampen excess noise and vibration.
What stud thread and hole size does the Anchor 10170 use?
Anchor 10170 has two M12-1.25 metric studs and five mounting holes of 11.5 mm (0.45 in) diameter.
Does Anchor 10170 replace A65024?
Yes. A65024 is one of the numbers this mount replaces, along with C65024 and 50810TK4A02.
