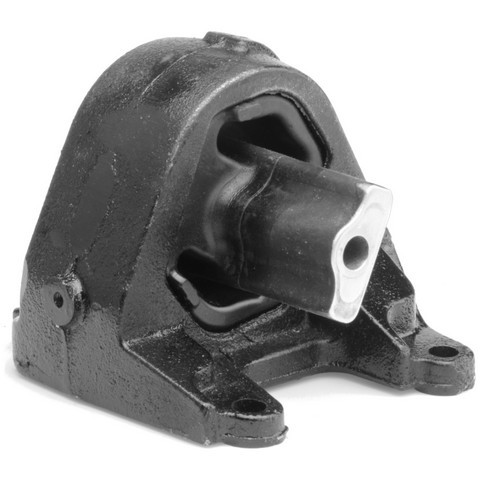

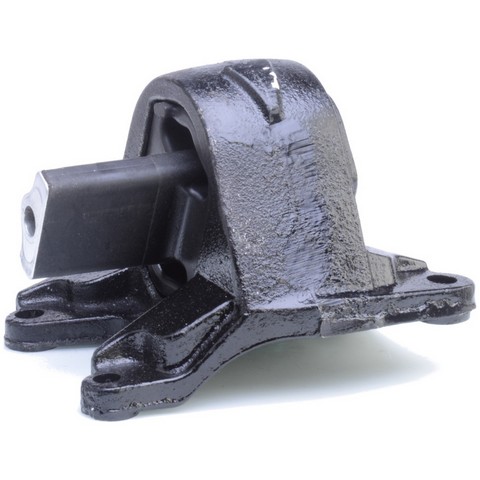

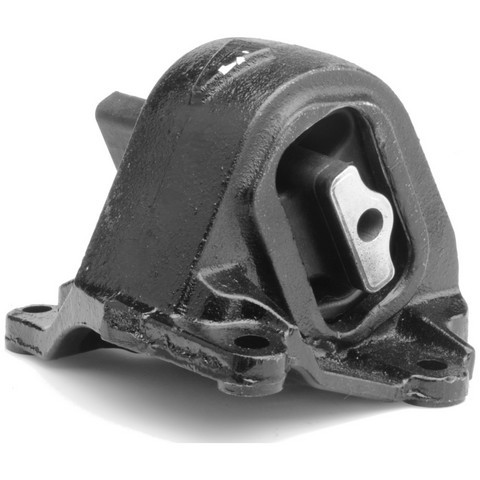

Anchor 3322 front right engine mount for the 2012-2017 Jeep Wrangler V6 3.6L and other vehicles supports the engine and dampens vibration.
- Solid cast construction with a painted, semi-gloss black finish
- Polyurethane mount material with a rubber bushing
- Rubber made to specific durometer (hardness) measurements for the vehicle application
- Engineered with a CAD/CAM process for consistent quality
- Five mounting holes, each 12.5 mm (0.49 in) in diameter
Quick facts
- Part: Anchor 3322 engine mount
- Fits: 2012-2017 Jeep Wrangler V6 3.6L and other vehicles
- Position: Front right
- Material: Polyurethane
- Condition: New
A worn engine mount can show up as a clunk when you accelerate, let off or shift, more vibration at idle, or cracked or separated rubber. Before replacing it, look the mount over for cracks or split rubber with the engine off and cool, since a clunk over bumps can come from the suspension instead. If the mount is the cause, this one replaces the front right side.
Fits
This front right mount is a direct-fit replacement for the 2012-2017 Jeep Wrangler V6 3.6L and the 2018 Jeep Wrangler JK V6 3.6L.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 for the front right side
- Mounting holes: 5, 12.5 mm (0.49 in) diameter
Build and materials
- Type: Solid
- Construction: Cast
- Mount material: Polyurethane
- Bushing material: Rubber
- Finish: Painted, black, semi-gloss
- Condition: New
- Warranty: Anchor 12-month warranty
- Country of origin: China
In the box
One front right engine mount. This side takes one, and the other side is a separate part. Mounting hardware, a mounting bracket and a heat shield are not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 6022945 · A5732 · 5147190AC · 603322 · B5732 · 5653 · 4355R · EM4214
This part cross-references / interchanges with the following part numbers:
6022945, A5732, 5147190AC, 603322, B5732, 5653, 4355R, EM4214
Frequently Asked Questions
Is the Anchor 3322 engine mount right for the 2018 Jeep Wrangler JK V6 3.6L?
Yes. Anchor 3322 is the front right mount for the 2018 Jeep Wrangler JK V6 3.6L, and it also fits the 2012-2017 Jeep Wrangler V6 3.6L.
Does this Anchor motor mount come with bolts?
No. This Anchor 3322 listing is one mount; mounting hardware, a mounting bracket and a heat shield are not included, so plan on new bolts.
Are Anchor engine mounts like this one solid or hydraulic?
This one is a solid type with cast construction. The mount material is polyurethane, and the finish is painted semi-gloss black.
Could a clunk when accelerating come from a worn front right engine mount?
Yes, a clunk when accelerating, letting off or shifting, or extra vibration at idle, can mean a worn mount. Cracked or separated rubber is another sign.
What warranty comes with the Anchor 3322 engine mount?
Anchor backs the 3322 engine mount with a 12-month warranty.
