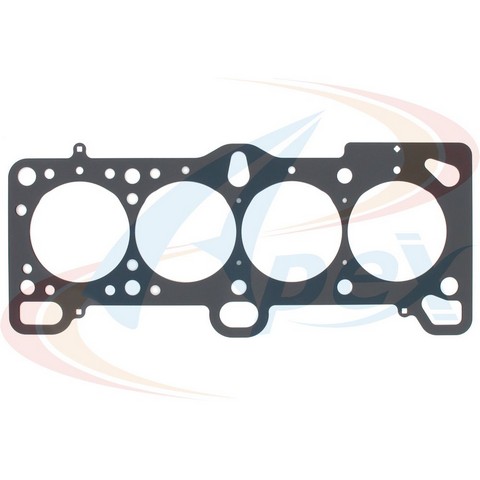

Reseal the critical joint between cylinder head and engine block with the APEX Automobile Parts Inc head gasket, part number AHG240, a direct-fit head gasket for the 2001-2011 Hyundai Accent, 2006-2011 Kia Rio and 2006-2011 Kia Rio5 equipped with the L4-1.6L engine. APEX lists it simply as a head gasket, and each of the listed applications uses one.
An engine cylinder head gasket sits clamped between the cylinder head and the block. It seals the combustion chambers so the engine can hold compression. It also keeps coolant and oil in their own passages as they cross from block to head.
- Part type: Cylinder head gasket (APEX part number AHG240).
- Engine: L4-1.6L, for the listed Hyundai and Kia applications.
- Quantity per application: 1. The listed applications use one gasket.
- Hazardous material: No.
Signs a head gasket may need replacing include unexplained coolant loss, white exhaust smoke, overheating, milky oil, or a misfire from lost compression. These symptoms can have other causes, so diagnose the problem before replacing parts. If a failed gasket is the cause, this head gasket replaces it on the listed L4-1.6L applications.
For installation, follow the vehicle service information for surface preparation, the tightening sequence and the correct head bolts. The service information also says whether the original bolts may be reused.
Frequently Asked Questions
Is this the right head gasket for a 2008 Hyundai Accent 1.6L?
Yes, if it has the L4-1.6L engine. AHG240 is listed for the 2001-2011 Hyundai Accent with that engine, and the "Vehicles it fits" section shows the full fitment chart.
Does it also fit the 2006-2011 Kia Rio 1.6L and 2006-2011 Kia Rio5 1.6L?
Yes. It is listed for the 2006-2011 Kia Rio and the 2006-2011 Kia Rio5 with the L4-1.6L engine.
What does a cylinder head gasket do?
It seals the joint between the cylinder head and the engine block. It holds combustion pressure in the cylinders and keeps the coolant and oil passages sealed from each other.
How many head gaskets does the engine use?
The listed applications use one head gasket per engine.
Can I reuse my old head bolts?
Check the vehicle service information for the correct head bolts and whether the originals may be reused. Many head bolts are designed for single use.
