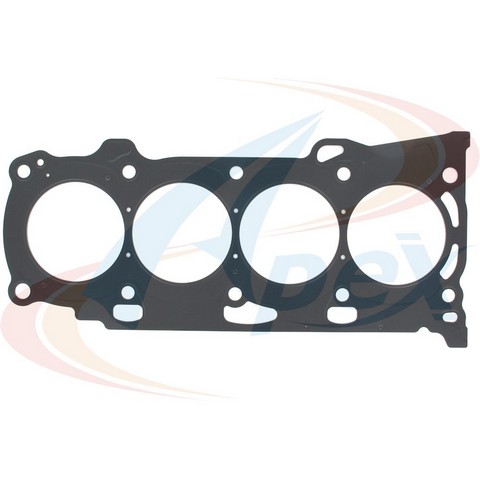

Keep combustion pressure, coolant and oil where they belong with the APEX Automobile Parts Inc Cylinder Head Gasket, part number AHG876. It fits many vehicles, among them the 2007-2011 Toyota Camry, 2009-2010 Toyota Corolla and 2007-2008 Toyota RAV4, all with the L4-2.4L engine. See the "Vehicles it fits" section for the full list.
A head gasket sits between the cylinder head and the engine block. It seals the combustion chambers so the engine can hold compression. It also keeps the coolant and oil passages that run between the head and block sealed from each other and from the outside of the engine.
- Part type: cylinder head gasket, APEX part number AHG876.
- Engine: listed for L4-2.4L applications.
- Quantity per application: the listed applications use one gasket.
- Handling: not classified as a hazardous material.
Signs a head gasket may need replacing: coolant loss with no visible leak, white exhaust smoke, overheating, milky oil, bubbles in the coolant reservoir, or a misfire with low compression on one or more cylinders. Other faults can cause these symptoms, so diagnose the engine before replacing parts.
Installation: Replacing a head gasket is an involved job. Clean and inspect the mating surfaces of the cylinder head and block. Follow the vehicle service information for the correct head bolts, the tightening sequence and torque, and whether the original bolts may be reused.
Frequently Asked Questions
Is this a cylinder head gasket for the 2007-2008 Toyota RAV4 2.4L?
Yes. AHG876 is listed for the 2007-2008 Toyota RAV4 with the L4-2.4L engine. The "Vehicles it fits" section shows every listed vehicle.
Does it fit the 2007-2011 Toyota Camry 2.4L and the 2009-2010 Toyota Corolla 2.4L?
It is listed for the 2007-2011 Toyota Camry and the 2009-2010 Toyota Corolla with the L4-2.4L engine.
What does an engine cylinder head gasket do?
It seals the joint between the cylinder head and the engine block. It holds combustion pressure in the cylinders and keeps the coolant and oil passages sealed from each other.
What are the signs of a failing head gasket?
Common signs include unexplained coolant loss, white exhaust smoke, overheating, milky oil and bubbles in the coolant reservoir. Other faults can cause these, so diagnose the engine first.
How many head gaskets does my engine need?
The listed L4-2.4L applications use one head gasket. Follow the vehicle service information for the head bolt tightening sequence, the torque and whether the original bolts can be reused.
