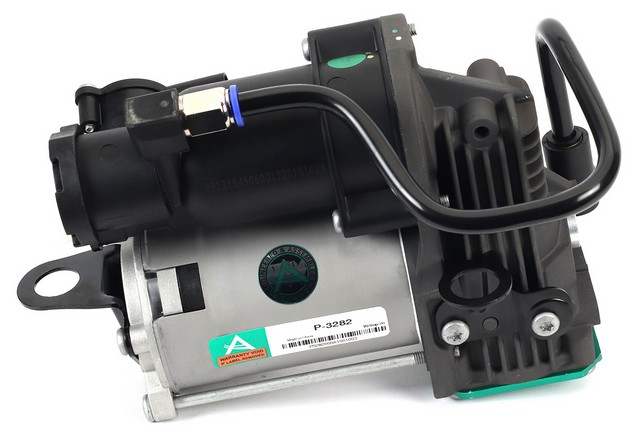

Arnott Industries P-3282 air suspension compressor for the 2018-2021 Mercedes-Benz S560 and other vehicles supplies compressed air to the air suspension. This new Arnott Industries air suspension compressor is a direct replacement for the original OE compressor.
- Epoxy electro-coated finish to prevent corrosion
- Heavy-duty motor for long service life
- Dryer and intake air hose included
- Thermal overload protection built in
- Connects directly into the vehicle's air lines and electrical connector
- Compact, lightweight compressor with a mounting bracket included
Quick facts
- Part: Arnott Industries P-3282 air suspension compressor
- Fits: 2018-2021 Mercedes-Benz S560 and other vehicles
- Condition: New
A sagging ride height, a compressor that runs for a long time or an air suspension warning light can mean the compressor is wearing out. Air leaks at a spring or line, a faulty valve block or a weak relay can produce these symptoms too, so find the cause before buying.
Fits
The 2018-2021 Mercedes-Benz S560, the 2014-2021 Mercedes-Benz S63 AMG and the 2018-2020 Mercedes-Benz Maybach S560 are covered, along with many other vehicles. A 2018-2021 Mercedes-Benz S560 takes one compressor. Open the "Vehicles it fits" section to match your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 3
- Voltage: 12 V DC
- Amperage rating: 20 A
- Maximum pressure: 180 psi
Build and materials
- Grade: standard replacement
- Finish: epoxy electro-coated
- Condition: new
- Country of origin: China
In the box
One air suspension compressor with mounting bracket, mounting hardware, dryer, intake air hose, electrical connector and relay. The valve block, wiring harness and protective cover are not included.
Interchange: 0993200104 · 099320010480
Frequently Asked Questions
Is the Arnott Industries P-3282 compressor right for the 2018-2021 Mercedes-Benz S560?
Yes. Arnott Industries P-3282 fits the 2018-2021 Mercedes-Benz S560 and the 2014-2021 Mercedes-Benz S63 AMG, and takes one compressor per vehicle.
Does the P-3282 air suspension compressor come with a valve block?
No, the valve block, wiring harness and protective cover are not included. The box holds the compressor with its bracket, mounting hardware, dryer, intake air hose, electrical connector and relay.
What pressure and voltage is this air suspension compressor rated for?
The Arnott Industries P-3282 is rated for a maximum of 180 psi on a 12 V DC supply, with a 20 amp rating.
Can I keep driving if my air suspension compressor has failed?
Have the system checked or replaced promptly rather than driving on it. Ride height and ride quality can suffer when the suspension cannot hold air.
Does this Arnott compressor replace number 0993200104?
Yes, 0993200104 is an interchange number for Arnott Industries P-3282, and 099320010480 is listed with it.
