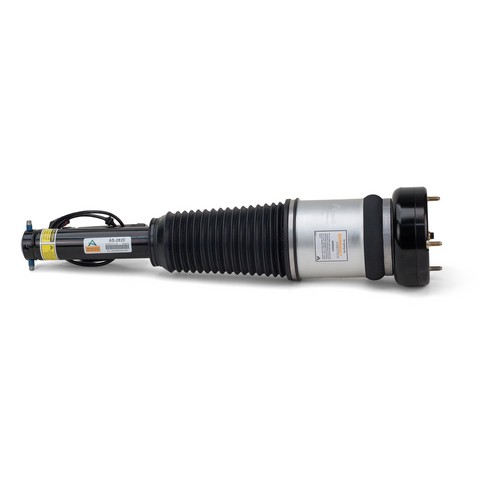

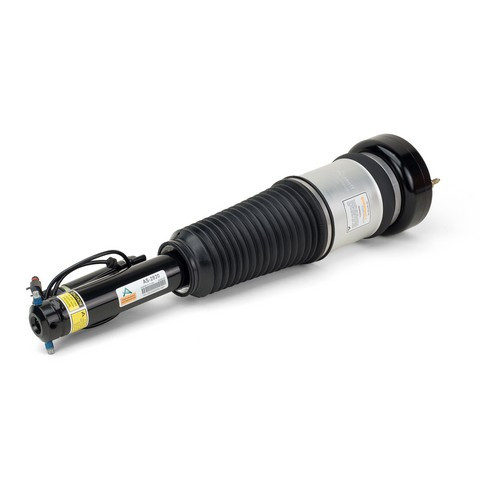

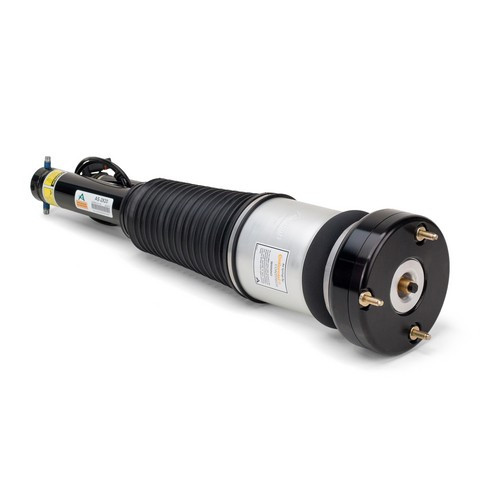

Arnott Industries AS-2820 front air suspension strut for the 2007-2011 Mercedes-Benz S500 and other vehicles combines an air spring and a shock absorber in one assembled unit. The design has no lower isolator seal, which is subject to failure on the original strut.
- Custom-valved shock absorber with a hydraulic internal damper
- Multi-ply Continental ContiTech rubber air spring bladder holds air pressure for consistent ride height and performance
- Aluminum can and dust baffle partly protect the strut from debris
- Strut is assembled with heavy-duty crimping rings, seals, O-rings and bump stop
- Fully assembled air suspension strut plugs directly into the vehicle's electronic connector and is designed to eliminate fault codes
Quick facts
- Part: Arnott Industries AS-2820 air suspension strut
- Fits: 2007-2011 Mercedes-Benz S500 and other vehicles
- Position: Front
- Condition: New
A low corner, a bouncy or harsh ride or an air suspension warning can mean a front strut is worn, though the air compressor or an air line leak can also be the source. Replace the pair together; this listing is one strut.
Fits
This front air suspension strut is a direct-fit replacement for the 2007-2011 Mercedes-Benz S500, the 2011-2013 Mercedes-Benz S350 and the 2010-2013 Mercedes-Benz S400, and those cars take two up front. If your Mercedes-Benz is a different year or model, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Upper mount type: Stud
- Lower mount type: Bolt
- Body end measuring point: Center eye
- Shock absorber rod end measuring point: Shoulder of stud
Build and materials
- Type: Complete air suspension strut assembly
- Internal damper type: Hydraulic
- Spring rate type: Progressive
- Air adjustable: Yes
- Adjustable compression: No
- Condition: New
- Country of origin: United States
In the box
One air suspension strut with mounting hardware, upper and lower mounting isolators, spring isolators and a boot. A spring seat is not included.
Installation notes
- Comes pre-assembled for easy installation.
- Detailed installation instructions are available.
Interchange: 2213204913 · 2213205113 · 2213207313 · 2213209313 · 221320931380
This part cross-references / interchanges with the following part numbers:
2213204913, 2213205113, 2213207313, 2213209313, 221320931380
Frequently Asked Questions
Does the Arnott Industries AS-2820 fit the 2007-2011 Mercedes-Benz S500?
Yes. The Arnott Industries AS-2820 is a front air suspension strut for the 2007-2011 Mercedes-Benz S500, and that car takes two.
What hardware comes with this front air suspension strut, and is a spring seat included?
The Arnott Industries AS-2820 includes mounting hardware, upper and lower mounting isolators, spring isolators and a boot. A spring seat is not included.
Is the air spring bladder on this front air suspension strut made by ContiTech?
Yes. This strut uses a multi-ply Continental ContiTech rubber air spring bladder that maintains air pressure for consistent ride height and performance.
How can I tell if a front air suspension strut is going bad?
A corner that sits low, a bouncy or harsh ride, or a tear or leak at the rubber bladder can mean the strut is worn. A shop can test the air suspension system.
Does this air suspension strut plug straight into the vehicle's connector?
Yes. It plugs directly into the vehicle's electronic connector and arrives pre-assembled, and detailed installation instructions are available.
