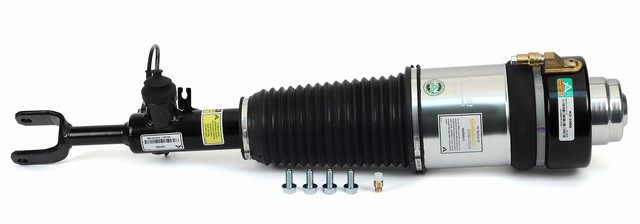

Arnott Industries AS-3369 front left air suspension strut for the 2006-2011 Audi A6 and other vehicles combines an air spring and a shock absorber at the front left wheel. This new assembly replaces the adaptive damping strut and converts the suspension from active to passive, and its sensor is designed to eliminate dash panel error messages.
- Multi-ply Continental ContiTech air spring sleeve protected by an aluminum can
- Custom-valved, velocity-sensitive shock absorber with progressive spring rate
- CNC-machined top mount made from aircraft-quality aluminum
- Seals, O-rings and bump stop, plus heavy-duty crimping rings, air fitting and connector valve
Quick facts
- Part: Arnott Industries AS-3369 air suspension strut
- Fits: the 2006-2011 Audi A6 and other vehicles
- Position: Front left
- Condition: New
A corner that sits low, a bouncy ride or a leaking air sleeve can mean the strut is worn, though other suspension or air-system parts can show similar symptoms. Before replacing it, look the front left strut over with the engine off for cracks in the sleeve or boot and for oil on the shock body. For best results, replace struts in pairs; this listing is one strut.
Fits
It fits the 2006-2011 Audi A6, the 2005-2011 Audi A6 Quattro and the 2007-2011 Audi S6.
Specifications
Fit and size
- Position: Front left
- Quantity: 1 for the front left
- Upper mount type: Threaded
- Lower mount type: Clevis
- Body end measuring point: Center eye
- Rod end measuring point: Shoulder of stud
Build and materials
- Internal damper type: Hydraulic
- Spring rate: Progressive
- Air adjustable: Yes
- Adjustable damping: No
- Condition: New
- Country of origin: United States
In the box
One front left air suspension strut with mounting hardware, a bearing plate, spring isolators, an upper mounting isolator and a dust boot. A spring seat and a lower mounting isolator are not included. The front left takes one strut; the front right is ordered separately.
Installation notes
- Arrives pre-assembled for easy installation.
Interchange: 4F0616039 · 4F0616039AA · 4F0616039AB · 4F0616039J · 4F0616039M · 4F0616039N · 4F0616039P · 4F0616039Q · 4F0616039R · 4F0616039S · 4F0616039T
This part cross-references / interchanges with the following part numbers:
4F0616039, 4F0616039AA, 4F0616039AB, 4F0616039J, 4F0616039M, 4F0616039N, 4F0616039P, 4F0616039Q, 4F0616039R, 4F0616039S, 4F0616039T
Frequently Asked Questions
Does the Arnott AS-3369 air strut fit the 2007-2011 Audi S6?
Yes. Arnott Industries AS-3369 is a front left air suspension strut listed for the 2007-2011 Audi S6, as well as the 2006-2011 Audi A6 and the 2005-2011 Audi A6 Quattro.
Does this front left air strut come with a bearing plate and isolators?
Yes. It includes a bearing plate, spring isolators, an upper mounting isolator, mounting hardware and a dust boot. A spring seat and a lower mounting isolator are not included.
Does Arnott's AS-3369 strut keep the adaptive damping?
No. Arnott AS-3369 replaces the adaptive damping strut and converts active to passive. Its shock absorber is custom-valved, and damping is not adjustable.
How can I tell if a front left air strut is leaking?
With the engine off, look at the air sleeve and boot for cracks and at the shock body for oil. A sagging corner or a dash warning can also be signs; a shop can test the air system.
Does this air strut need assembly before installation?
No. This strut arrives pre-assembled, with the Continental ContiTech air sleeve already protected by its aluminum can.
