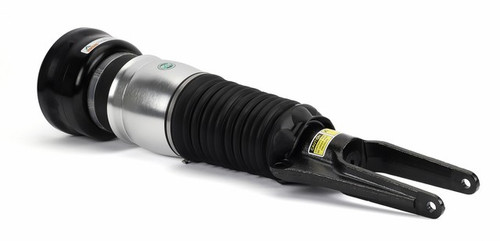

Arnott Industries AS-3376 front right air suspension strut for the 2014-2016 Porsche Panamera is a complete assembly that supports the car on air and damps wheel motion.
- Custom-tuned Eibach damper with a hydraulic internal damper
- Goodyear air sleeve protected by an aluminum can and a dust cover
- CNC-machined top mount made from aircraft-quality aluminum
- Polyurethane bump stop, O-rings and heavy-duty crimping rings
- Converts active to passive
Quick facts
- Part: Arnott Industries AS-3376 air suspension strut
- Fits: 2014-2016 Porsche Panamera
- Position: Front right
- Condition: New
A sagging corner, a bouncy or harsh ride, or air loss at this wheel can mean the strut is worn. A leaking airline or a weak compressor can be behind those signs too, so find the cause before you buy a strut.
Fits
It is a direct-fit replacement for the 2014-2016 Porsche Panamera, and the front right of that car takes one. This listing is one strut for the front right; the front left is a separate part, and the other side of the front axle is normally done at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Upper mount type: Stud
- Lower mount type: Clevis
- Body end measuring point: Center eye
- Rod end measuring point: Shoulder of stud
- Airline fitting: 6 MM
Build and materials
- Type: Complete air suspension strut assembly
- Spring rate: Progressive
- Internal damper type: Hydraulic
- Air adjustable: Yes
- Adjustable damping: No
- Condition: New
- Country of origin: United States
In the box
One air suspension strut with mounting hardware, a bearing plate, an upper mounting isolator, spring isolators, a boot and heavy-duty crimping rings. A spring seat and a lower mounting isolator are not included.
Installation notes
- Detailed installation instructions are available.
Interchange: 97034305234 · 97034305235 · 97034305237
This part cross-references / interchanges with the following part numbers:
97034305234, 97034305235, 97034305237
Frequently Asked Questions
Is the Arnott AS-3376 the right air suspension strut for the 2014-2016 Porsche Panamera?
Yes. Arnott Industries AS-3376 is a front right air suspension strut that fits the 2014-2016 Porsche Panamera. The front left side takes a separate part.
Does this air strut come with a spring seat or lower mounting isolator?
No, the spring seat and lower mounting isolator are not included. The strut comes with mounting hardware, a bearing plate, an upper mounting isolator, spring isolators and a boot.
Is the damper on the Arnott AS-3376 adjustable?
No. The Eibach damper on Arnott Industries AS-3376 is custom tuned with hydraulic internal damping, and adjustable damping and adjustable compression are not offered. The strut is air adjustable.
How can I tell if this front right air strut is worn or leaking?
A sagging corner or a bouncy, harsh ride can mean the strut is worn. A shop can pressure-test the air system to find a leak.
Are installation instructions available for this air strut?
Yes. Detailed installation instructions are available for this strut, and mounting hardware is included.
