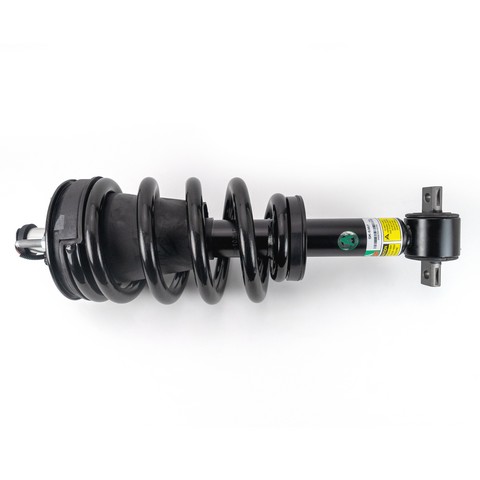

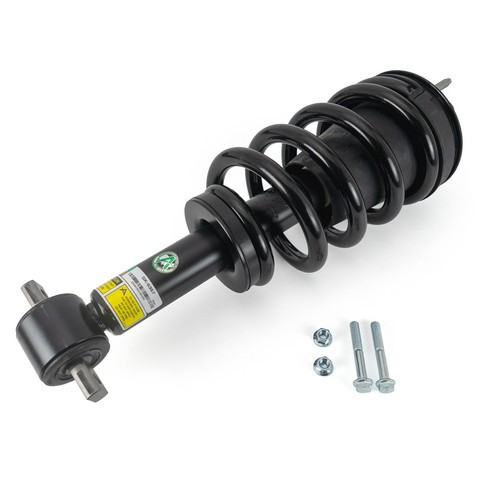

Arnott Industries SK-5357 front strut assembly for the 2015-2018 Chevrolet Silverado 1500 and other vehicles converts the factory Z95 MagneRide to custom-tuned passive valving. This complete strut and coil spring assembly is new and includes a coil spring and a shock absorber.

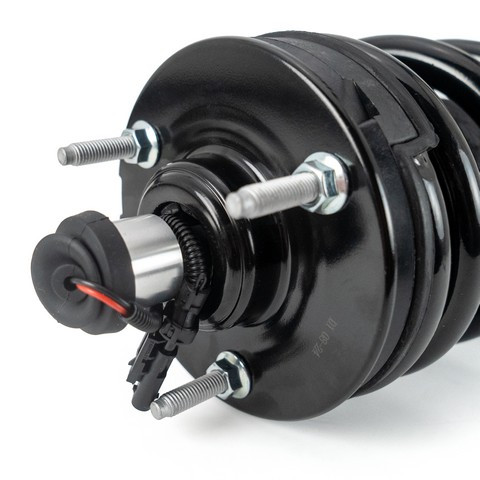

- Converts factory Z95 MagneRide to custom-tuned passive valving with an included electronics bypass
- Custom-valved twin-tube shock absorber that is gas charged and has a hydraulic damper
- Powder-coated coil spring with a linear spring rate
- Returns the front to factory ride height for a stable, comfortable ride
- Lab-tested and driven thousands of miles on a fleet of test vehicles
Quick facts
- Part: Arnott Industries SK-5357 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2015-2018 Chevrolet Silverado 1500 and other vehicles
- Position: Front
- Material: Steel housing, rubber dust shield
- Condition: New
Worn control arm bushings or sway bar links can be behind a clunk over bumps, a bouncy ride or uneven tire wear, just as a tired strut can, so find the cause before buying. If a worn strut is the cause, this assembly replaces the strut and coil spring together.
Fits
This front strut assembly fits either front position on the 2015-2018 GMC Sierra 1500 and the 2015-2020 Chevrolet Tahoe. This listing is one strut; the other front side is normally done at the same time. If your vehicle is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Travel length: 5.5 in
- Upper mount type: Stud
- Lower mount type: Cross pin
- Body end measuring point: Center eye
- Rod end measuring point: Shoulder of stud
Build and materials
- Construction: Twin tube, gas charged
- Damper: Hydraulic, passive
- Spring: Coil spring, linear spring rate, powder-coated
- Housing material: Steel
- Dust shield material: Rubber
- Condition: New
- Country of origin: United States
In the box

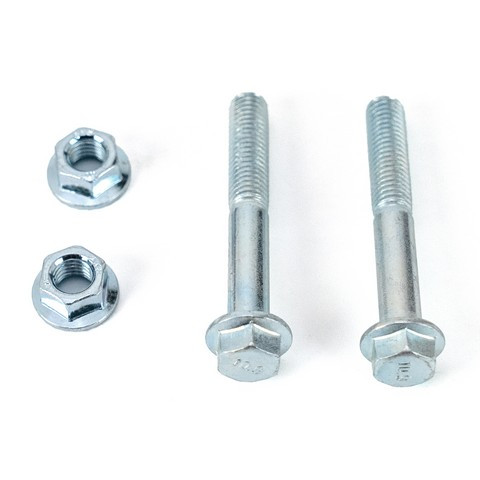

One front strut assembly with its coil spring, spring seat, bearing plate, upper and lower mounting isolators, spring isolators, dust shield, boot and mounting hardware. This listing holds one; the vehicle takes two. A mounting bracket is not included, and an old one may not be reusable.
Installation notes
- Comes fully pre-assembled for plug-and-play installation.
- A detailed installation manual comes with the part for the steps.
Interchange: 23151123 · 23312167 · 23464589 · 84061228 · 84176631 · 84977478
This part cross-references / interchanges with the following part numbers:
23151123, 23312167, 23464589, 84061228, 84176631, 84977478
Frequently Asked Questions
Does the Arnott Industries SK-5357 fit the 2015-2018 GMC Sierra 1500?
Yes. Arnott Industries SK-5357 fits the 2015-2018 GMC Sierra 1500 on the front, either side, and it also fits the 2015-2020 Chevrolet Tahoe.
Does the SK-5357 strut come with the coil spring and mounting hardware?
Yes. Arnott Industries SK-5357 includes the coil spring, spring seat, bearing plate, isolators, dust shield, boot and mounting hardware. A mounting bracket is not included.
Is the Arnott SK-5357 a passive or an electronic strut?
Passive. This twin-tube, gas-charged strut uses custom-tuned passive valving, and an electronics bypass is included for converting the factory Z95 MagneRide.
What signs can point to a worn front strut assembly like the SK-5357?
Oil on the strut body, a clunk over bumps or a bouncy ride can all be signs of a worn front strut. Have a worn strut replaced promptly rather than driving on it.
Do I have to assemble the Arnott SK-5357 strut before installing it?
No. Arnott Industries SK-5357 comes fully pre-assembled for plug-and-play installation, and a detailed installation manual is included for the steps.
