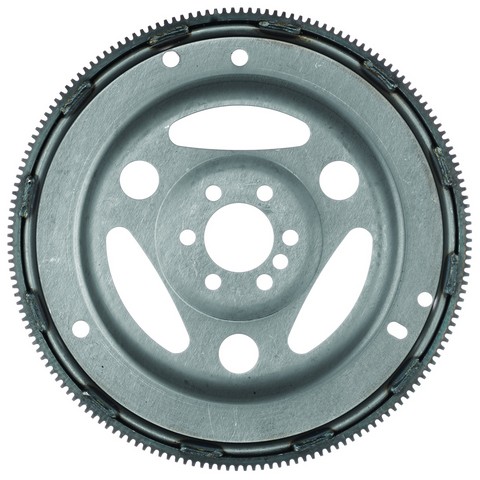

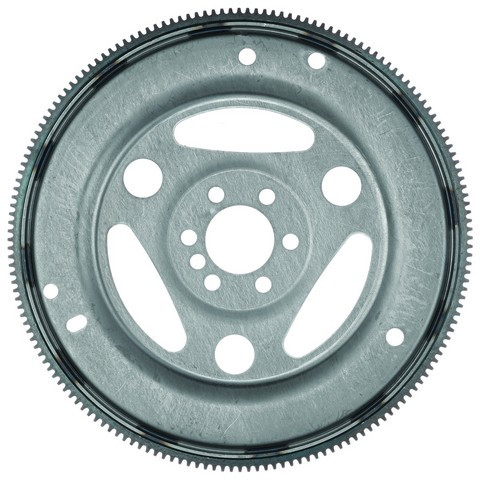

ATP Z-269 auto trans flexplate for the 1999-2013 Chevrolet Silverado 1500 and other vehicles connects the engine to the transmission's torque converter.
- Steel plate with bolt holes for the torque converter and teeth for the starter
- Correct bolt hole spacing and ring gear teeth for long life and durability
- Flexes to allow for torque converter expansion as engine RPM increases
Quick facts
- Part: ATP Z-269 auto trans flexplate
- Fits: 1999-2013 Chevrolet Silverado 1500 and other vehicles
- Material: Steel
- Condition: New
Constant expansion and contraction can eventually crack or shear a flexplate, and a damaged one can cause serious, expensive damage. A broken flexplate cannot be repaired, only replaced. A failing starter, a loose torque converter or a worn engine mount can also be behind drivetrain noise or vibration, so find the cause before you buy a flexplate.
Fits
The 1999-2013 Chevrolet Silverado 1500, the 1999-2013 GMC Sierra 1500 and the 2000-2014 Chevrolet Tahoe take this flexplate, and so do many other models. One flexplate goes between the engine and the transmission. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Diameter: 358.775 mm
- Ring gear teeth: 168
- Quantity per vehicle: 1
Build and materials
- Material: Steel
- SFI approved: No
- Condition: New
- Country of origin: Mexico
Interchange: AA-G181 · AA-G186 · FRA-471
GM181 · GM186 · 12553054 · 12563136 · 12580709 · 12602448 · 12606620 · V5011
This part cross-references / interchanges with the following part numbers:
GM181, GM186, 12553054, 12563136, 12580709, 12602448, 12606620, AA-G181, AA-G186, FRA471, FRA-471, V5011
Frequently Asked Questions
Does the ATP Z-269 auto trans flexplate fit the 1999-2013 GMC Sierra 1500?
Yes. The ATP Z-269 fits the 1999-2013 GMC Sierra 1500, and that truck takes one flexplate.
How many ring gear teeth does the ATP Z-269 flexplate have?
The ATP Z-269 has 168 ring gear teeth for the starter and measures 358.775 mm in diameter.
Is this auto trans flexplate SFI approved?
No. This flexplate is not SFI approved and does not come with an SFI certification sticker.
Can a broken auto trans flexplate be repaired?
No. A broken flexplate has to be replaced, and a damaged one can lead to serious, expensive damage.
Does the ATP Z-269 flexplate replace number 12563136?
Yes. 12563136 is one of the numbers the ATP Z-269 replaces, along with GM181 and GM186.
