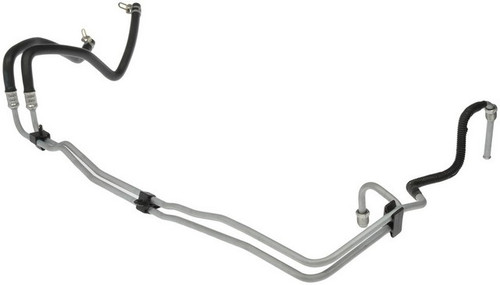

Dorman 624-515 transmission oil cooler hose for the 2006-2009 Ford Fusion 4-cylinder 2.3L or V6 3.0L and other vehicles carries transmission fluid to and from the oil cooler. This automatic transmission oil cooler hose assembly is a direct replacement for leaking or damaged lines.
- Dorman OE Solutions line
- Replaces lines that have failed from corrosion, collision, vibration or fitting damage
- Steel hose in a flexible molded assembly
- Maximum working pressure of 1000 psi
- Operating range of -40°F to 302°F
Quick facts
- Part: Dorman 624-515 transmission oil cooler hose
- Also called: automatic transmission oil cooler hose assembly
- Fits: 2006-2009 Ford Fusion 4-cylinder 2.3L or V6 3.0L and other vehicles
- Position: Inlet and outlet
- Material: Steel (hose)
- Condition: New
Fluid drips under the car, or rust, dents or a damaged end on a line, can mean this hose is worn, though a leaking transmission cooler or a loose line fitting can be behind the same signs, so find which one is leaking before ordering.
Fits
It fits the 2006-2009 Ford Fusion 4-cylinder 2.3L or V6 3.0L and the 2006-2009 Mercury Milan 4-cylinder 2.3L or V6 3.0L. Each takes one assembly, which covers the inlet and outlet lines.
Specifications
Fit and size
- Position: inlet and outlet
- Length: 15 in
- End 1 inside diameter: 0.28 in
- End 1 type: clamp
- End 2 type: male threads
- Quantity per vehicle: 1
Build and materials
- Hose material: steel
- Hose shape: molded assembly
- Flexible: yes
- Maximum working pressure: 1000 psi
- Operating temperature: -40°F to 302°F
- Condition: new
- Country of origin: China
In the box
Two transmission lines, two threaded connectors, two spring clamps and three brackets. A gasket or seal is not included.
Interchange: 6E5Z7R081F · 5801490
Frequently Asked Questions
Does the Dorman 624-515 hose fit the 2006-2009 Mercury Milan 4-cylinder 2.3L or V6 3.0L?
Yes. Dorman 624-515 fits the 2006-2009 Mercury Milan with either the 4-cylinder 2.3L or the V6 3.0L, and the 2006-2009 Ford Fusion with those same engines.
Does the 624-515 come with both transmission lines and brackets?
Yes. Dorman 624-515 comes as an assembly with two transmission lines, two threaded connectors, two spring clamps and three brackets. A gasket or seal is not included.
What pressure and temperature is this steel transmission oil cooler hose rated for?
The hose has a maximum working pressure of 1000 psi. Its operating temperature range runs from -40°F to 302°F.
How can I tell if a transmission oil cooler hose is leaking?
Fluid spots where the car sits, or wet, rusty or damaged lines and fittings, can point to a leak. A shop can test the lines, and a leak should be looked at promptly.
Does Dorman 624-515 replace part number 5801490?
Yes. 5801490 is listed as an interchange number for Dorman 624-515, along with 6E5Z7R081F.
