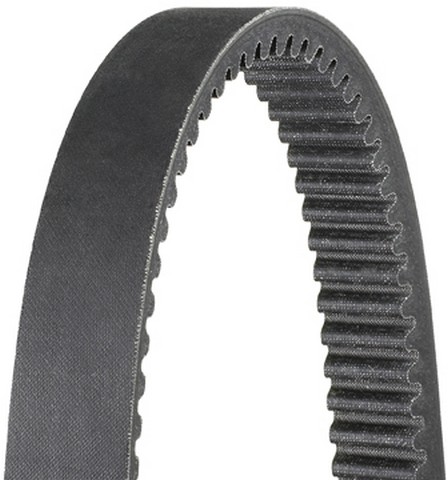

Dayco HP HP3020 CVT belt for the 1994-2011 Polaris Widetrak LX and other vehicles carries engine power between the pulleys of the continuously variable transmission. As the pulleys open and close, the belt rides higher or lower on them to change the drive ratio.
- Snow belt from the Dayco HP line
- Fabric top material with a flat top cog type and a round bottom cog type
- Operating temperature range from -40 C to 112.7 C (-40 F to 235 F)
- 28-degree belt angle with a 34.925 mm top width
Quick facts
- Part: Dayco HP HP3020 CVT belt
- Also called: cvt transmission belt
- Fits: 1994-2011 Polaris Widetrak LX and other vehicles
- Position: Drive belt
- Material: Fabric top
- Condition: New
A worn CVT transmission belt can slip under throttle, show cracked or frayed edges, or wear narrower than its original top width. Before you replace the belt, rule out the clutches and other drive parts as the cause, because slipping can have more than one source.
Fits
This CVT belt is a drive belt for the 1994-2011 Polaris Widetrak LX, the 2008 Polaris 340 and the 2008 Polaris 340 Transport, along with other Polaris models. A 1994-2011 Polaris Widetrak LX takes one belt. For a Polaris not named here, find its model and years in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Top width: 1.375 in (34.925 mm)
- Outside circumference: 47.250 in (1200.150 mm)
- Thickness: 0.550 in
- Angle: 28 degrees
Build and materials
- Top material: Fabric
- Top cog type: Flat (top not cogged)
- Bottom cog type: Round
- EBS (Engine Braking System) belt: No
- Operating temperature: -40 C to 112.7 C (-40 F to 235 F)
- Condition: New
- Country of origin: Italy
Interchange: 138-4716U4 · 46-1114
MAX1105 · MAX1105M3 · 38T4730
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
138-4716U4, 46-1114, MAX1105, MAX1105M3, 38T4730, NA, 1603-F-5001, 295993, 3211031, 3211042, 3211045, 3211070, 3211078
Frequently Asked Questions
Is the Dayco HP HP3020 CVT belt right for a 2008 Polaris 340?
Yes. Dayco HP HP3020 is listed for the 2008 Polaris 340, the 2008 Polaris 340 Transport and the 1994-2011 Polaris Widetrak LX. The "Vehicles it fits" section covers other Polaris models.
What size is the Dayco HP HP3020 belt?
Top width is 1.375 in (34.925 mm), outside circumference 47.250 in (1200.150 mm) and thickness 0.550 in, with a 28-degree angle on this Dayco HP HP3020 belt.
What temperature range is this CVT belt rated for?
The listed operating temperature runs from -40 C to 112.7 C (-40 F to 235 F).
How can I tell if this CVT belt is worn out?
With the engine off and cool, look for cracked or frayed edges, or a belt worn narrower than the 1.375 in top width listed for this belt. A shop can measure it for you.
Does the HP3020 belt have a cogged top?
No. This CVT belt has a flat fabric top and a round bottom cog type, and it is not an EBS (Engine Braking System) belt.
