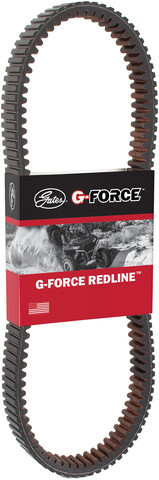

Gates 47R4368 CVT belt for the 2024-2026 Arctic Cat Pantera 7000 and other vehicles carries engine power through the transmission. It is a high-performance power sport belt made for demanding off-road use.
- Gates G-Force RedLine series, the first of a new generation of CVT belts
- Design aimed at acceleration and top speed, with less speed-ratio and energy loss in extreme off-road use
- Resists cracking and wear in demanding applications
- Heat resistance and recovery, even under severe duty cycles
- Patented compound with high axial stiffness, so the belt can run at higher continuous torque or load
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 47R4368 CVT belt
- Also called: CVT transmission belt
- Fits: 2024-2026 Arctic Cat Pantera 7000 and other vehicles
- Position: Drive belt
- Material: EPDM belt, aramid cord
- Condition: New
A worn belt can show cracks, frayed sides, or slipping that feels like sluggish response while riding. Before replacing it, look it over with the engine off and cool, and measure its top width against the 37 mm spec below. Look at the clutch faces at the same time, since the cause may not be the belt.
Fits
The 2024-2026 Arctic Cat Pantera 7000, the 2026 Arctic Cat Pantera 9000 and the 2023-2026 Arctic Cat Riot 9000 Atac are among the many Arctic Cat models this belt fits. If yours is not one of them, find its model and year in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 37 mm (1.476 in)
- Outside circumference: 1139 mm (44.854 in)
- Pitch length: 1109.5 mm (43.68 in)
- Pitch width: 37.5 mm (1.4 in)
- Thickness: 15.9 mm (0.627 in)
Build and materials
- Type: Power sport specialty high performance CVT belt
- Construction: Double notched
- Belt material: EPDM
- Cord material: Aramid
- Grade: OE Improved
- Condition: New
- Country of origin: United States
In the box
One CVT belt; the drive on these vehicles runs on a single belt.
Interchange: 0627-110 · 0627-112
XTX5063 · DBTX112EX · WBB112RS · 47C4368 · 47G4368 · XS829
This part cross-references / interchanges with the following part numbers:
0627-110, 0627-112, XTX5063, DBTX112EX, WBB112RS, 47C4368, 47G4368, 47R4368, XS829
Frequently Asked Questions
Does the Gates 47R4368 CVT belt fit the 2026 Arctic Cat Pantera 9000?
Yes. Gates 47R4368 fits the 2026 Arctic Cat Pantera 9000, and the fitment names no engine limit. Each vehicle takes one belt.
Is this CVT transmission belt from Gates made of EPDM?
Yes. Gates 47R4368 uses EPDM belt material with an aramid cord and has a double-notched construction.
How wide and long is the G-Force RedLine 47R4368 belt?
Top width is 37 mm (1.476 in) and outside circumference is 1139 mm (44.854 in). Pitch length is 1109.5 mm (43.68 in).
How do I tell if my Gates G-Force RedLine belt is worn?
Cracks, frayed sides or slipping can go with a worn belt. Measuring its top width against the 37 mm spec is a check you can do with the engine off and cool.
Does 47C4368 interchange with this Gates 47R4368 belt?
Yes. 47C4368 is on the interchange list for Gates 47R4368, along with 47G4368 and XS829.
