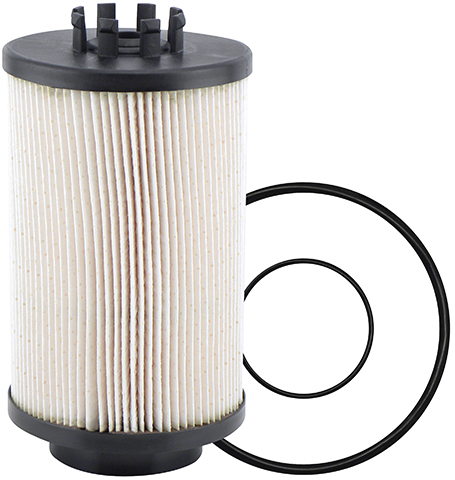

Baldwin PF7986 fuel filter for the 2021-2024 International HV613 6-cylinder 12.4L and other vehicles traps dirt and contaminants in the fuel before it reaches the engine. It is also sold as a fuel water separator filter.
- Fuel element with a 94.5 mm outside diameter and a 173.8 mm height
- Two grommets attached to the element
Quick facts
- Part: Baldwin PF7986 fuel filter
- Also called: fuel water separator filter
- Fits: 2021-2024 International HV613 6-cylinder 12.4L and other vehicles
Hard starting, rough running or a loss of power can mean the fuel filter is clogged, though a weak fuel pump or failing injectors can also be behind them, so find the cause before replacing the filter.
Fits
This filter is listed for a wide range of International and Caterpillar models, led by the 2021-2026 International HV513 6-cylinder 12.4L and the 2022-2026 International HX620 6-cylinder 12.4L, and each takes one filter. If your truck is not named here, look up its year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Outside diameter: 94.5 mm (3 23/32 in)
- Inner diameter: 12.7 mm (1/2 in)
- Second inner diameter: 44.4 mm (1 3/4 in)
- Height: 173.8 mm (6 27/32 in)
- Quantity per vehicle: 1
Build and materials
- Type: fuel element
- O-rings: one Viton and one nitrile, included
- Grommets: two, attached
- Country of origin: United States
In the box
One fuel filter element with one Viton O-ring and one nitrile O-ring.
Interchange: International 3004473-C91
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Will the Baldwin PF7986 fit a 2021-2024 International HV613 6-cylinder 12.4L?
Yes. Baldwin PF7986 is listed for the 2021-2024 International HV613 6-cylinder 12.4L, and that truck takes one filter.
Is this Baldwin Filters fuel filter sold as an element only?
Yes. Baldwin PF7986 is listed as a fuel element with two grommets attached, and a Viton O-ring and a nitrile O-ring are included.
What size is this fuel filter element?
It measures 94.5 mm (3 23/32 in) across and 173.8 mm (6 27/32 in) tall. The inner diameters are 12.7 mm (1/2 in) and 44.4 mm (1 3/4 in).
How can I tell if this fuel filter is clogged?
Hard starting, rough running or a loss of power can be signs of a clogged fuel filter. A shop can test fuel flow and pressure to confirm.
Does International 3004473-C91 cross to this filter?
Yes. International 3004473-C91 is listed as an interchange number for Baldwin PF7986.
