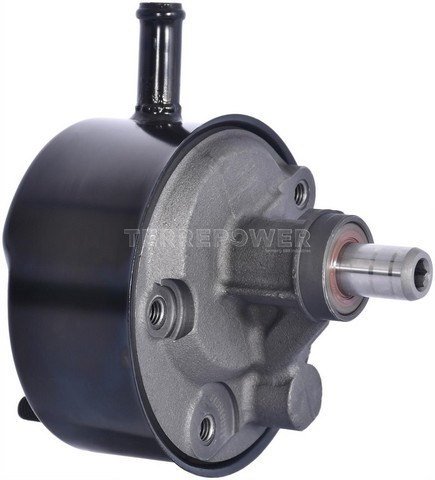

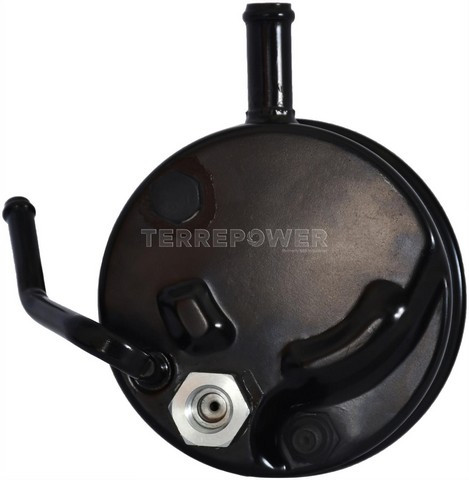

TERREPOWER N731-2274 power steering pump for the 2005-2016 Chevrolet Express 2500 and other vehicles builds hydraulic pressure for the steering gear. It is a new hydraulic pump.
- Cast iron housing
- Inlet attaches at the reservoir and measures 0.633 in across
- Threaded outlet, M16X1.50 thread and 16 mm outlet diameter
- Press-on pulley attachment, with 4 mounting holes
Quick facts
- Part: TERREPOWER N731-2274 power steering pump
- Fits: 2005-2016 Chevrolet Express 2500 and other vehicles
- Material: Cast iron housing
- Condition: New
A whine or groan when turning, steering that feels heavy or fluid around the pump can mean the pump is wearing out. A leaking power steering hose, a slipping drive belt or low fluid can be behind these signs too, so find the cause before buying a pump.
Fits
This pump fits the 2005-2016 Chevrolet Express 2500, the 2005-2016 GMC Savana 2500 and the 2005-2016 Chevrolet Express 3500, and each takes one. For any other vehicle, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 4
- Outlet thread size: M16X1.50
- Outlet diameter: 16 mm
- Inlet diameter: 0.633 in
Build and materials
- Type: hydraulic
- Housing material: cast iron
- Pulley attachment: press-on
- Outlet attachment: threaded
- Inlet attachment: reservoir
- Condition: new
- Country of origin: China
In the box
One power steering pump with its reservoir and an installation kit. The pulley, the reservoir cap and a sensor are not included.
Interchange: 15270799 · 15928343 · 19319922 · 208326683 · 20832683 · 25749748 · 26040780 · 26045994 · 26070078 · 88963503
This part cross-references / interchanges with the following part numbers:
15270799, 15928343, 19319922, 208326683, 20832683, 25749748, 26040780, 26045994, 26070078, 88963503
Frequently Asked Questions
Does this Chevy Express 3500 power steering pump fit the 2005-2016 model?
Yes. TERREPOWER N731-2274 fits the 2005-2016 Chevrolet Express 3500, and that van takes one pump.
Does the TERREPOWER N731-2274 pump come with a reservoir and a pulley?
Yes for the reservoir and the installation kit; no for the pulley. The pulley and the reservoir cap are not included.
What outlet thread does this power steering pump have?
The outlet is threaded M16X1.50 with a 16 mm outlet diameter. The inlet diameter is 0.633 in.
Is the housing on this power steering pump cast iron?
Yes. This pump has a cast iron housing and 4 mounting holes.
Is 15928343 an interchange number for this power steering pump?
Yes. 15928343 is one of the other-brand numbers that TERREPOWER N731-2274 replaces.
