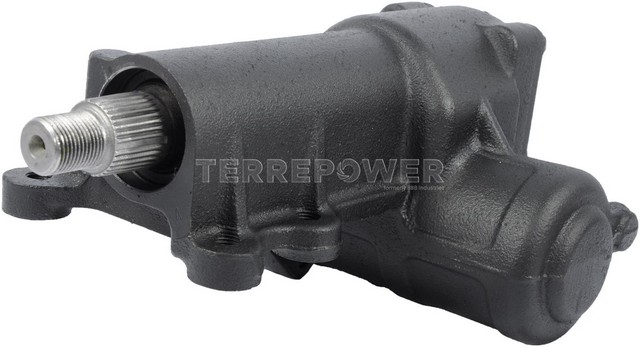

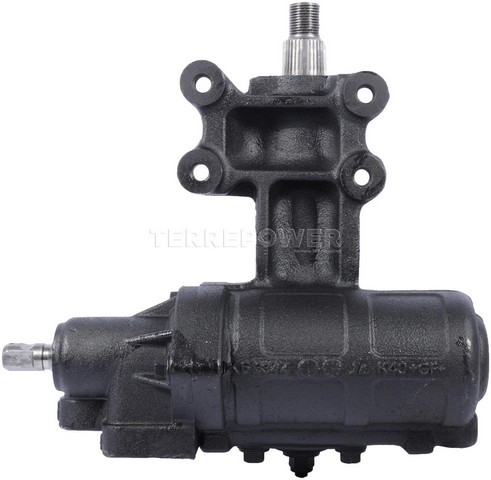

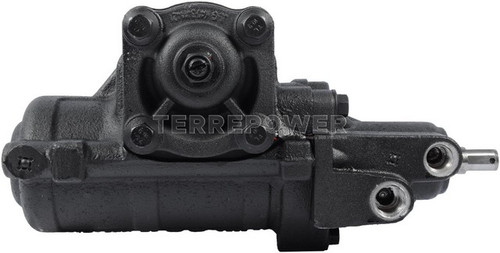

TERREPOWER 502-0150 steering gear for the 2010-2018 Jeep Wrangler and other vehicles turns steering wheel rotation into the motion that turns the wheels. It is a remanufactured power steering gear.
- Vision OE line, remanufactured and designed for dependability and reliability across the vehicle's service life
- 2.93 total turns lock to lock
- Pressure port thread M18X1.50 and return port thread M16X1.50
- Output shaft with 32 splines and a 31.75 mm (1.25 in) diameter
- Four mounting holes
Quick facts
- Part: TERREPOWER 502-0150 steering gear
- Fits: 2010-2018 Jeep Wrangler and other vehicles
- Condition: Remanufactured
Heavy or loose steering, a fluid leak at the gear or noise when turning can point to a worn steering gear. A worn tie rod, a leaking power steering hose or a weak pump can be behind these signs too, so find the cause before buying a gear.
Fits
It fits the 2010-2018 Jeep Wrangler and the 2018 Jeep Wrangler JK, and each takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Total turns lock to lock: 2.93
- Mounting holes: 4
- Pressure port (inlet) thread: M18X1.50
- Return port (outlet) thread: M16X1.50
- Output shaft diameter: 31.75 mm (1.25 in)
- Input shaft diameter: 18.03 mm (0.71 in)
- Output shaft splines: 32
Build and materials
- Type: Power
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured power steering gear with an installation kit.
Interchange: 52126348AA · 52126348AB · 52126348AC · 52126348AD · 52126348AE · 68052897AC · 68052897AD · 68052897AE
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
52126348AA, 52126348AB, 52126348AC, 52126348AD, 52126348AE, 68052897AC, 68052897AD, 68052897AE
Frequently Asked Questions
Is this a 2010-2018 Jeep Wrangler steering gear?
Yes. TERREPOWER 502-0150 fits the 2010-2018 Jeep Wrangler and the 2018 Jeep Wrangler JK, and each takes one.
Does the TERREPOWER 502-0150 steering gear come with an installation kit?
Yes. TERREPOWER 502-0150 comes with an installation kit alongside the remanufactured power steering gear.
What thread sizes do the ports on this steering gear have?
The pressure port is M18X1.50 and the return port is M16X1.50.
Can a worn power steering gear make the steering heavy or loose?
Yes, a worn gear can leave steering heavy or loose, or leak fluid. Steering is safety-critical, so have a shop check it promptly rather than keep driving.
How many splines are on the output shaft of this steering gear?
The output shaft has 32 splines and a 31.75 mm (1.25 in) diameter. The gear turns 2.93 times lock to lock.
